| Conveyor speed | 0.1~0.15m/s |
|---|---|
| Power supply | 220V AC (±10%) 50±3HZ |
| Channel height | 2 meters |
| Equipment noise | 58dB |
| X-Ray dosage each inspect | General mode: 0.14uSv; Special inspection mode: 0.8uSv |
| Inspection time | Single inspection time: 10.5s; scanning time: 7.6s; imaging time: 2.9s |

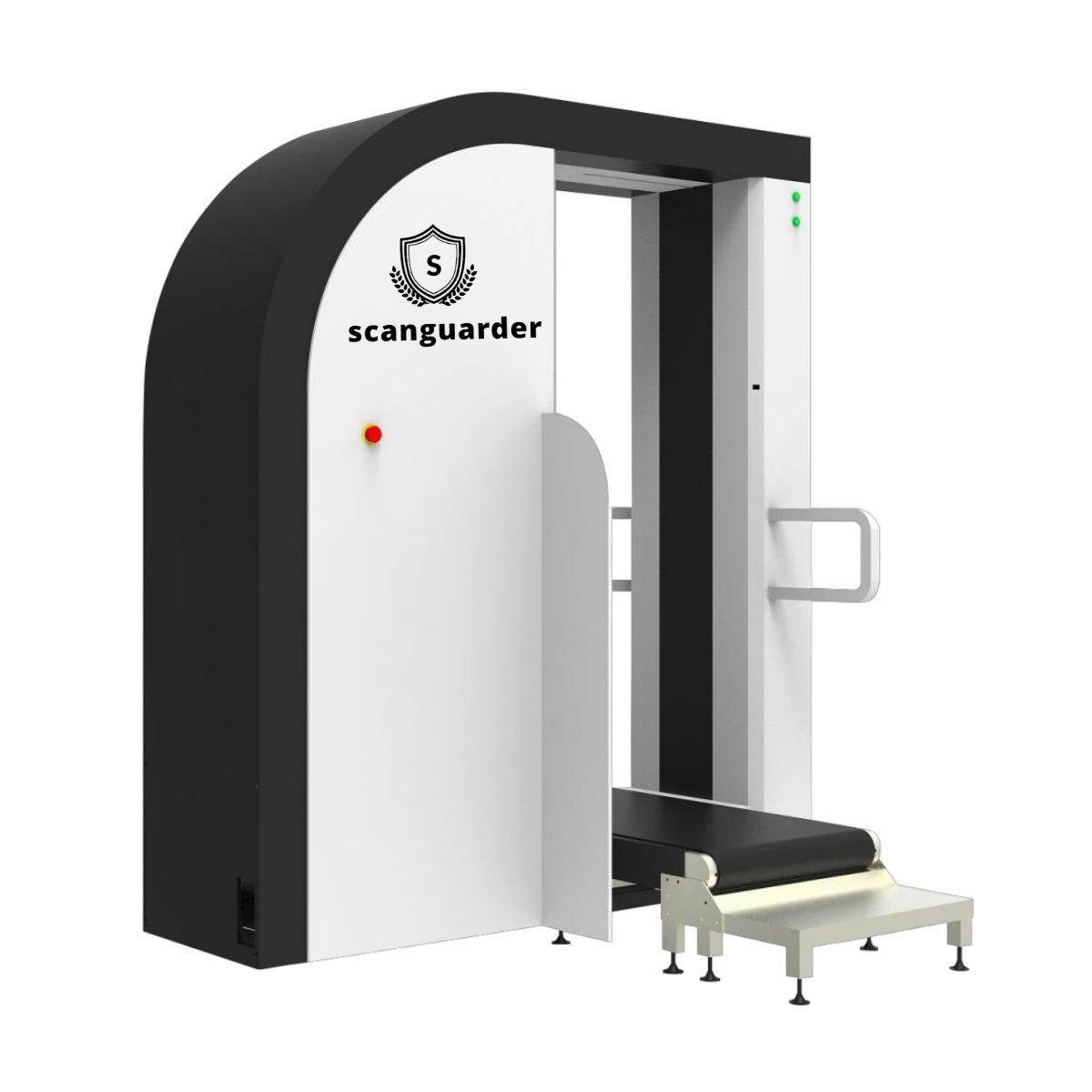

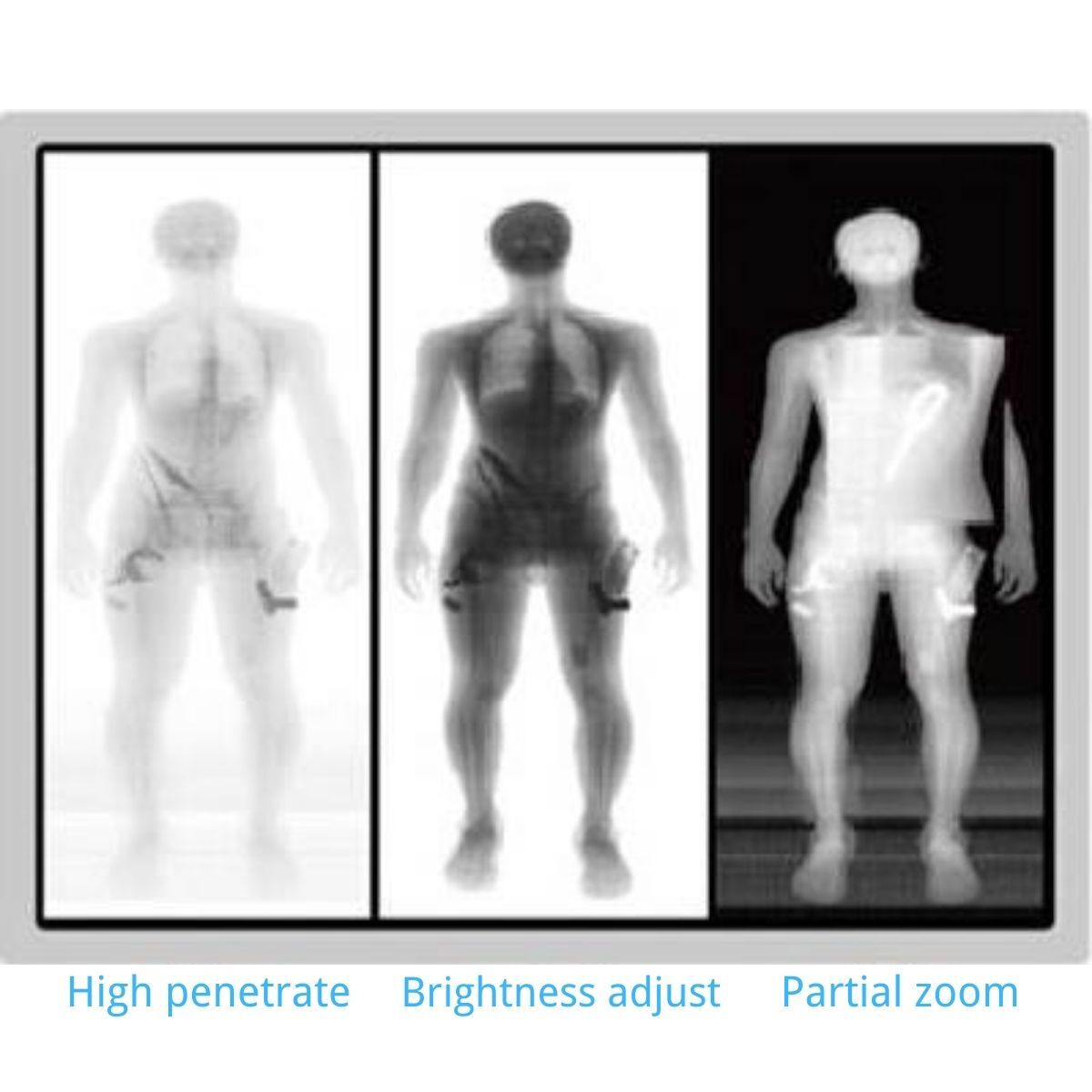

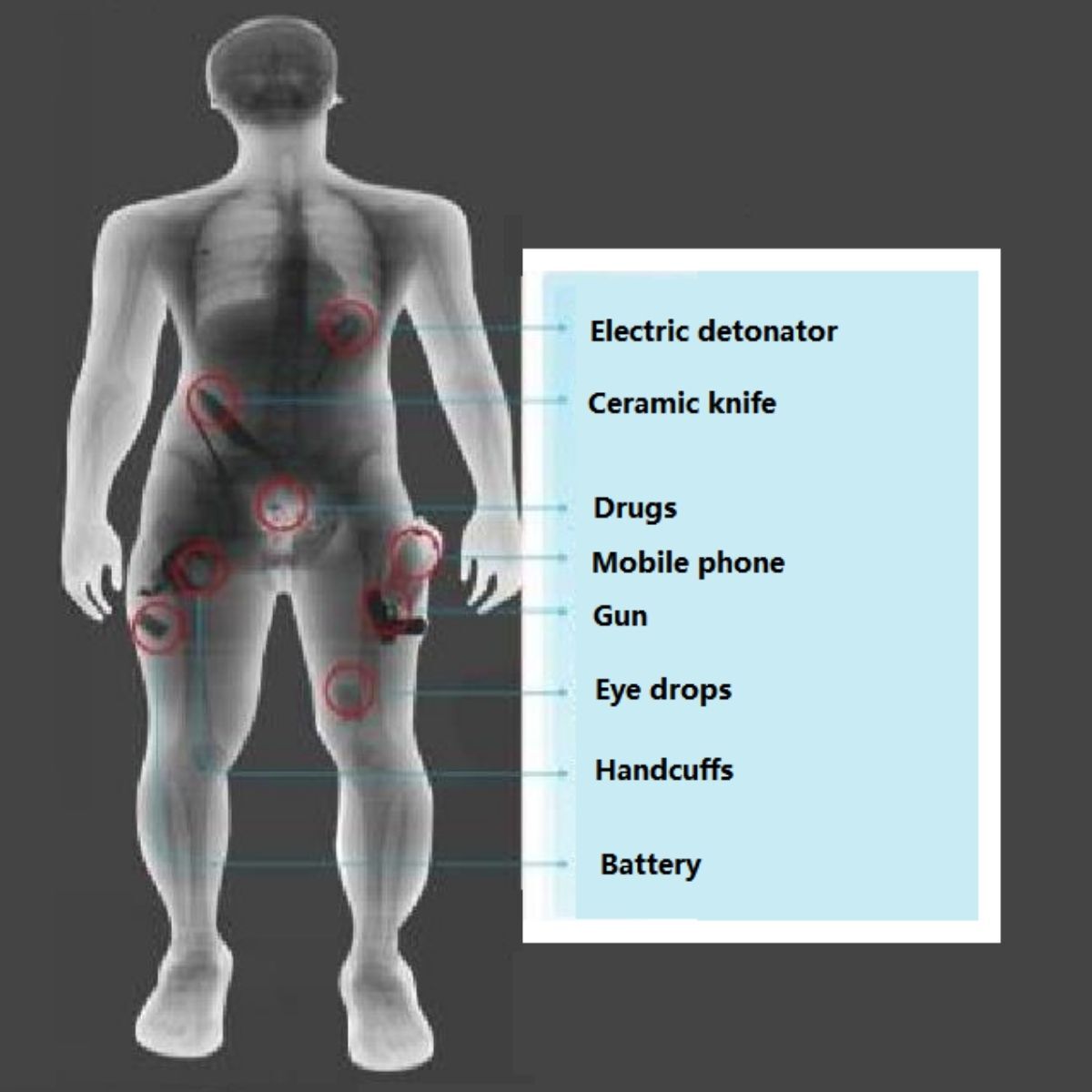

This S-8065D low dosage X-Ray human body safety inspection scanner is newly developed and manufactured by our company. The scanner system takes low-dose X-ray imaging technology, an open channel design, and cooperates with efficient image processing algorithms to generate real-time high-definition images. Only takes 10 seconds to complete a single inspection and effectively detect metal/non-metal suspects on scanned body, including but not limited to weapons, drugs, explosives, liquids, jewelry and electronic devices. The radiation dose of this scanner can meet and even is far superior to the international standard and is close to the natural level. It is widely applied to many important fields such as prisons, Customs, border defense, stations, airports and anti-drugs.
The frame is covered with a 2-6mm lead sheet to get all-around protection. There is a very low radiation dose rate, the radiation dose rate around the equipment is close to the natural level. Passing 50 inspections is equivalent to taking a 10-hour flight which is compliance with international health and safety standards.
Using 2-3mm cold-rolled steel sheet and mature craftsmanship, the structure is stable and firm, rust-proof and anti-corrosion prevent cable damage.
A real-time monitoring camera is provided for the channel, and real-time capture for each inspection, it is convenient to check the history, compare the real scene and inspection images.

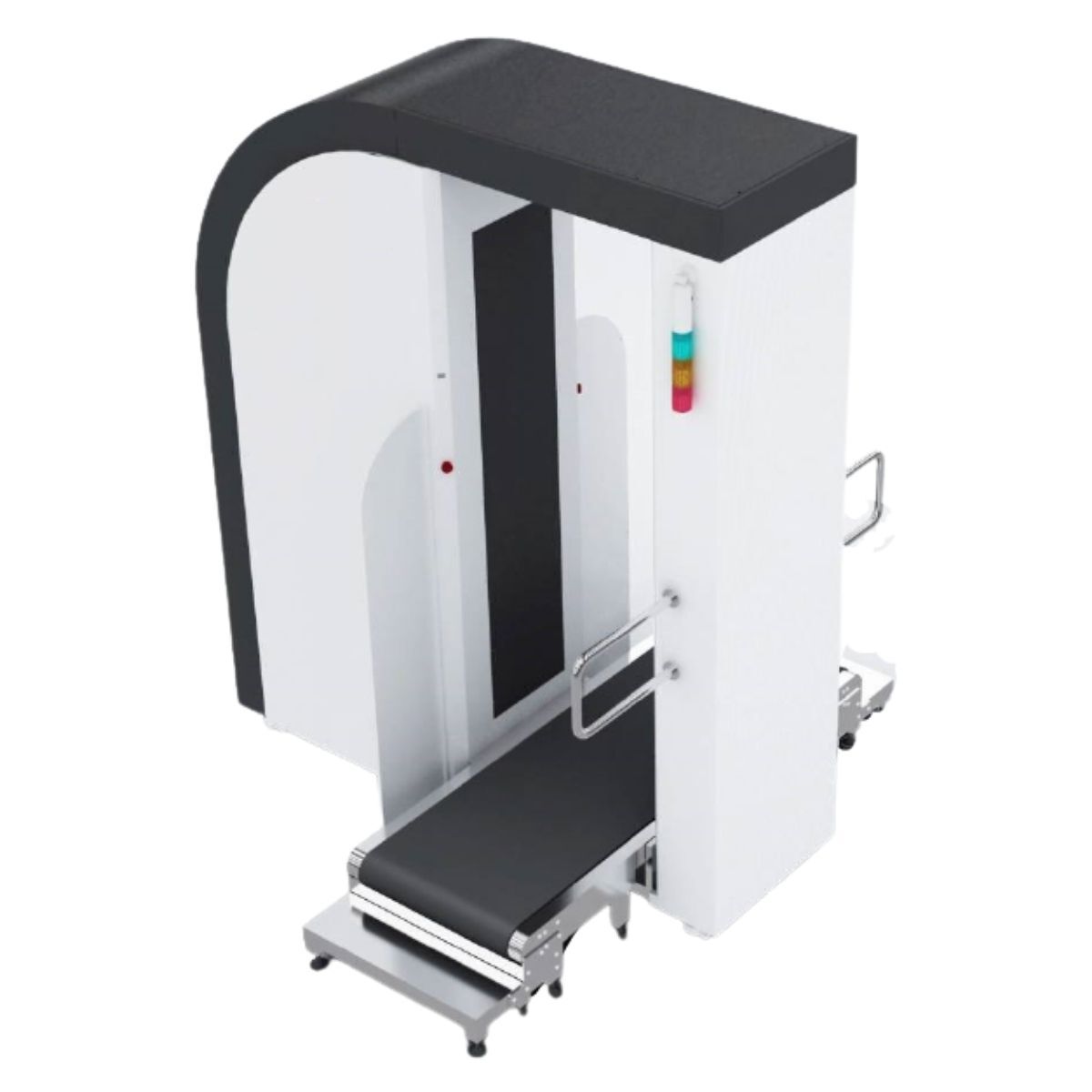

With an open channel design, there is no need to stand and stay on the channel, no need to take off shoes for inspection, also the non-contact inspection of the body and body surface can be completed within 10 seconds.
As for an exquisite structure, no special modification requirements on the site, quick installation and commissioning can be completed.
Basic parameters
Channel height: 2 meters
Conveyor belt speed: 0.1~0.15m/s
Human body background material detection capacity: 5mm thick
Detecting power of air background material: after high-density polyethylene serration: 1.2mm; after the smallest stainless steel serration 0.8mm
Body line resolution: Φ0.511mm
Volume resolution: Φ2.0mm
Line resolution: Φ0.0787mm
Spatial resolution level: Φ1.0mm, vertical: Φ1.0mm
Single inspection time: Single inspection time: 10.5s; scanning time: 7.6s; imaging time: 2.9s
Equipment noise: 58dB
Working power supply: 220V AC (±10%) 50±3HZ
Radiation safety
Single inspection dose: General mode: 0.14uSv; Special inspection mode: 0.8uSv
Radiation level in radiation workplace: Control area: 0.12uSv/h; Supervision area: 0.1 uSv/h; Operation area: 0.1 uSv/h
X-ray generator
Digital interface tube voltage: 80KV
Cooling/working cycle: Sealed oil cooling/100%
