| Measurement range | 30~45℃ (Accuracy ±0.3°C) |
|---|---|
| Working temperature | 5℃~55°℃ |
| Power supply | AC110V/220V f: 50/60HZ |
| Power consumption | 25W |
| Channel size | height 1930 (mm) * width 700 (mm) * depth 510 (mm) |
| Dimension | height 2230 (mm) * width 812 (mm) * depth 580 (mm) |
| Weight | 65KG |

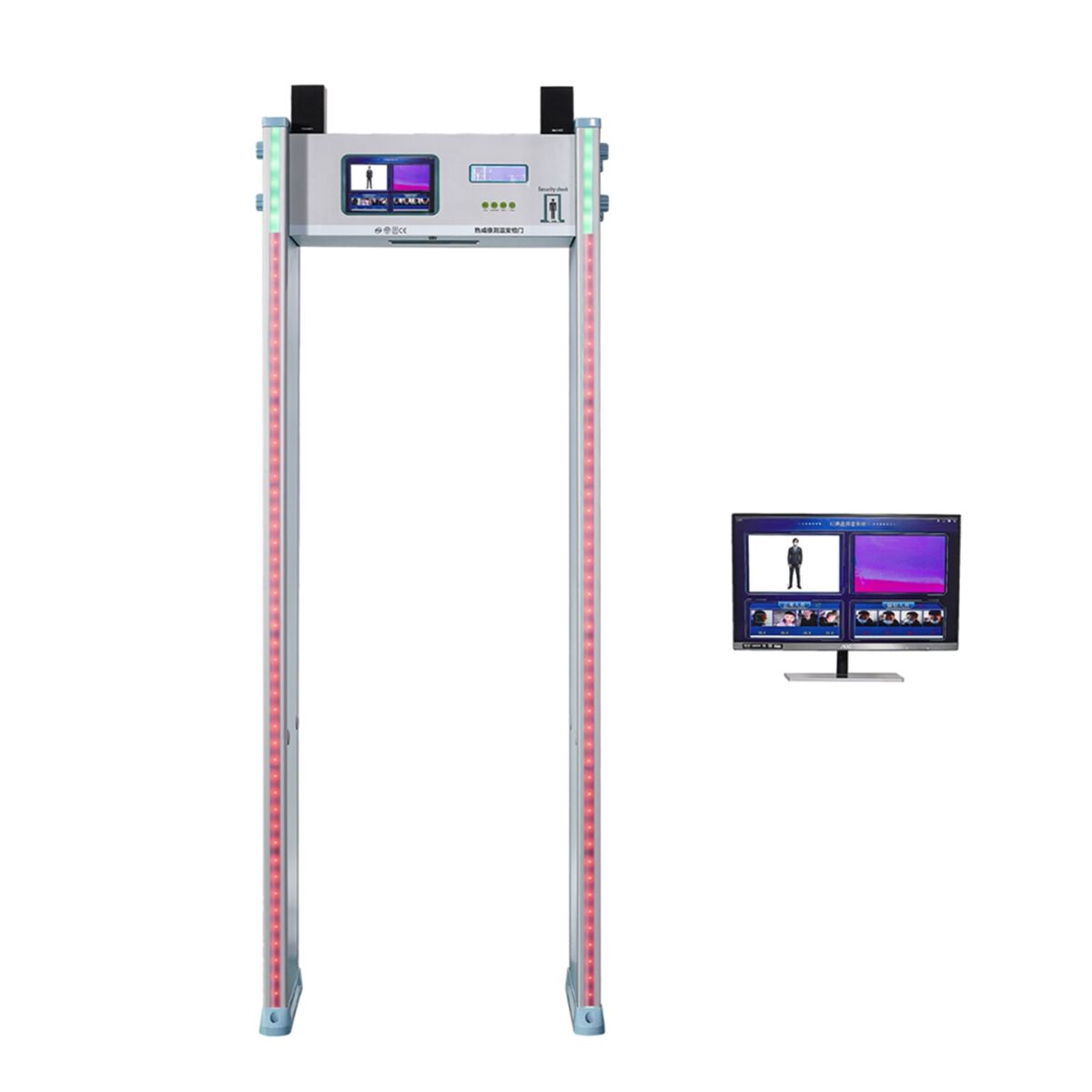

The model S-T210 Walk through thermal imaging metal detector is newest developed, which integrated the thermal imaging temperature measurement and metal detection. There is alarm when indicating abnormal body temperature and detected metal carrying, effectively controlling the spread of COVID-19 diseases and keep public safe. With a high sensitivity, strong anti-interference features, it is suitable for inspecting controlled knives, guns and other dangerous goods, widely used at schools, hospitals, airports, subway, prisons, courts, stations, exhibition halls, convention centre, major celebrations, concerts, and other important places.

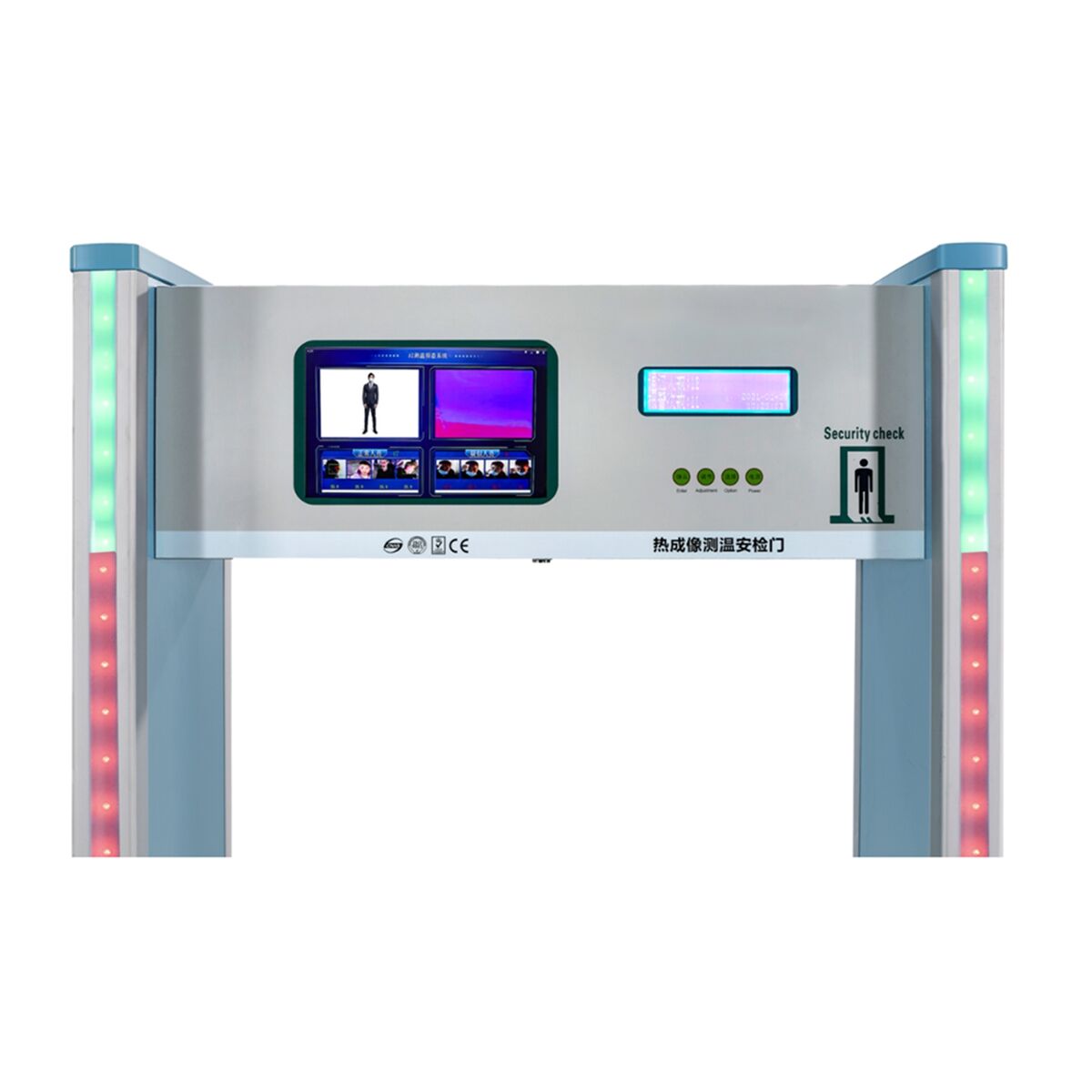

Interactive operation interface: 10.1inch LCD Display

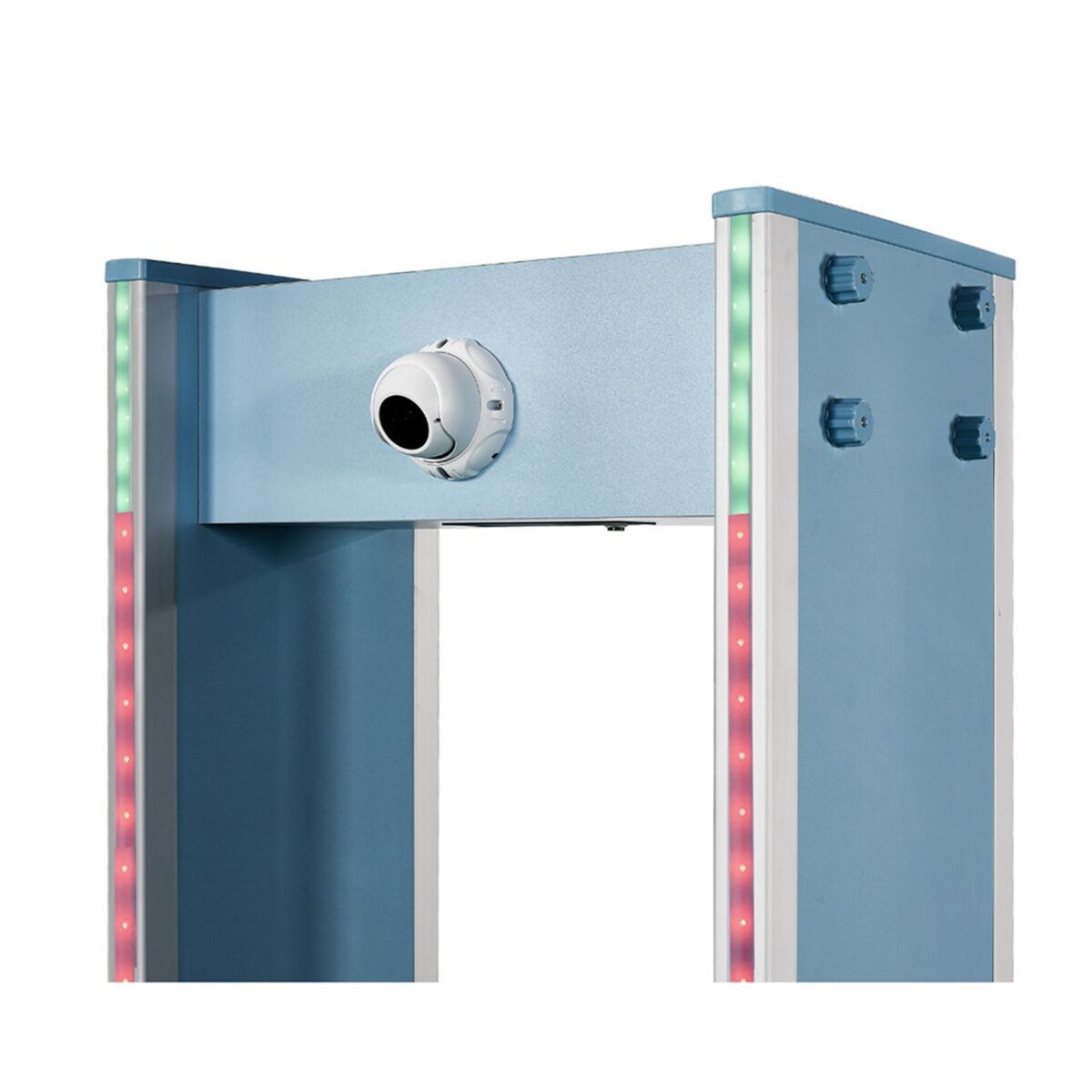

Sensor type: Silicon oxide uncooled infrared focal plane detector
Measurement range: 30~45℃
Temperature measurement accuracy: Accuracy ±0.3°C (human body temperature 33~40°C)
Regional temperature measurement: Support full-screen face tracking temperature measurement, independent setting of alarm type
Accurate temperature measurement distance: 0.8m~3m
Working environment temperature: temperature 5℃~55°℃
Temperature abnormal alarm: Alarm when reach highest/lowest temperature, support the alarm threshold setting of the highest and lowest temperature
Power supply: AC110V/220V f: 50/60HZ
Actual power consumption: 25W
Package weigh: 65KG
Channel size: height 1930 (mm) * width 700 (mm) * depth 510 (mm)
Dimensions: height 2230 (mm) * width 812 (mm) * depth 580 (mm)
