Walk through Metal Detector for Airport Bus Metro Stations Events Security Check S-B6500

Additional information

Sensitivity

each zone is adjustable from 0 to 1999

Working temperature

5℃~40℃(indoor) -20℃~+55℃(outdoor)

Power supply

AC110V/220V 60/50Hz

Power consumption

10W

Channel size

L2000 (mm) * W700 (mm) * D610 (mm)

Dimension

L2220 (mm) * W 820 (mm) * D 610 (mm)

Weight

75KG

Product Introduction:

This S-B6500 Walk through Metal Detector adopts unique shockproof, rainproof, and waterproof design, composite circuit design, built-in self-diagnosis program, power-on self-test, LCD multi language menu operation, six continuous detection areas, in line with international safety standards, built-in LED lights display on the four sides of the doorpost, automatically count the number of people passing through and the number of alarms, and a powerful DSP signal processing digital filter system. Suitable for places that need to prevent the loss of precious metal items, like industrial and mining enterprises, banks, private mansions and other places. And also effectively prevent places that carry dangerous metal objects, such as airports, stations, customs, prisons, exhibition halls, etc.

Product Details:

Features:

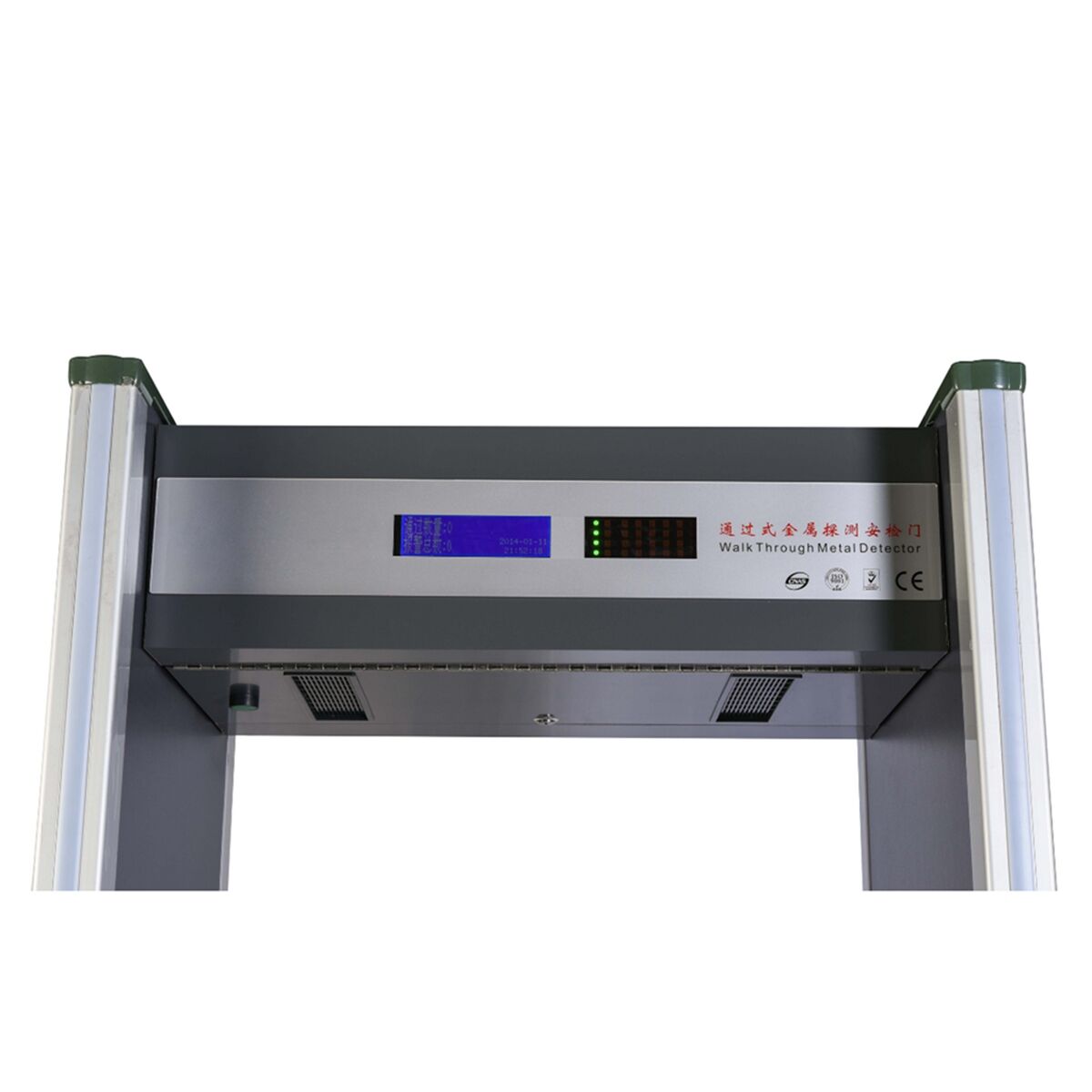

Friendly interactive operation interface: One 5.5-inch LCD screen and two-way column light bar to alert; the alarm intensity indicator can reflect the metal content passed.

Accurate positioning: Eighteen overlapping mesh detection areas are divided, dual-transmit and dual-receive, which can accurately locate the detected object and visually display the location of the target.

Quickly exclude small objects: Metal objects such as keys, belt buckles or mobile phones can be excluded, and designated locations can be set.

Door body material: The door body is made of waterproof door panel, the exterior is painted PVC, and the door body is equipped with wear-resistant foot covers and waterproof glue, which has the characteristics of corrosion resistance and corrosion resistance.

Built-in self-diagnosis program: Power-on self-test, automatic prompting of errors.

Quick setting: 11 kinds of working parameters such as courts, stations, airports, prisons, etc. can be quickly set according to different places.

Modular design: Modular design is adopted, which is convenient to install and easy to troubleshoot.



Parameter:

Power supply: AC110V/220V 60/50Hz

Actual power consumption: 10W

Signal frequency: 7kHz-8.999kHz

Sensitivity: The sensitivity of each zone is adjustable from 0 to 1999;

Frequency band: Can be automatically set at boot

Volume: 9 kinds of ring tones, 8 levels of volume adjustable

Alarm duration: 0.5~4 seconds adjustable

Number of detection areas: 18

Working environment temperature: 5℃~40℃(indoor) -20℃~+55℃(outdoor)

Working environment humidity: ≤98%

Channel size height: 2000 (mm) * width 700 (mm) * depth 610 (mm)

Dimensions: height: 2220 (mm) * width 820 (mm) * depth 610 (mm)

Package weight: 75KG
