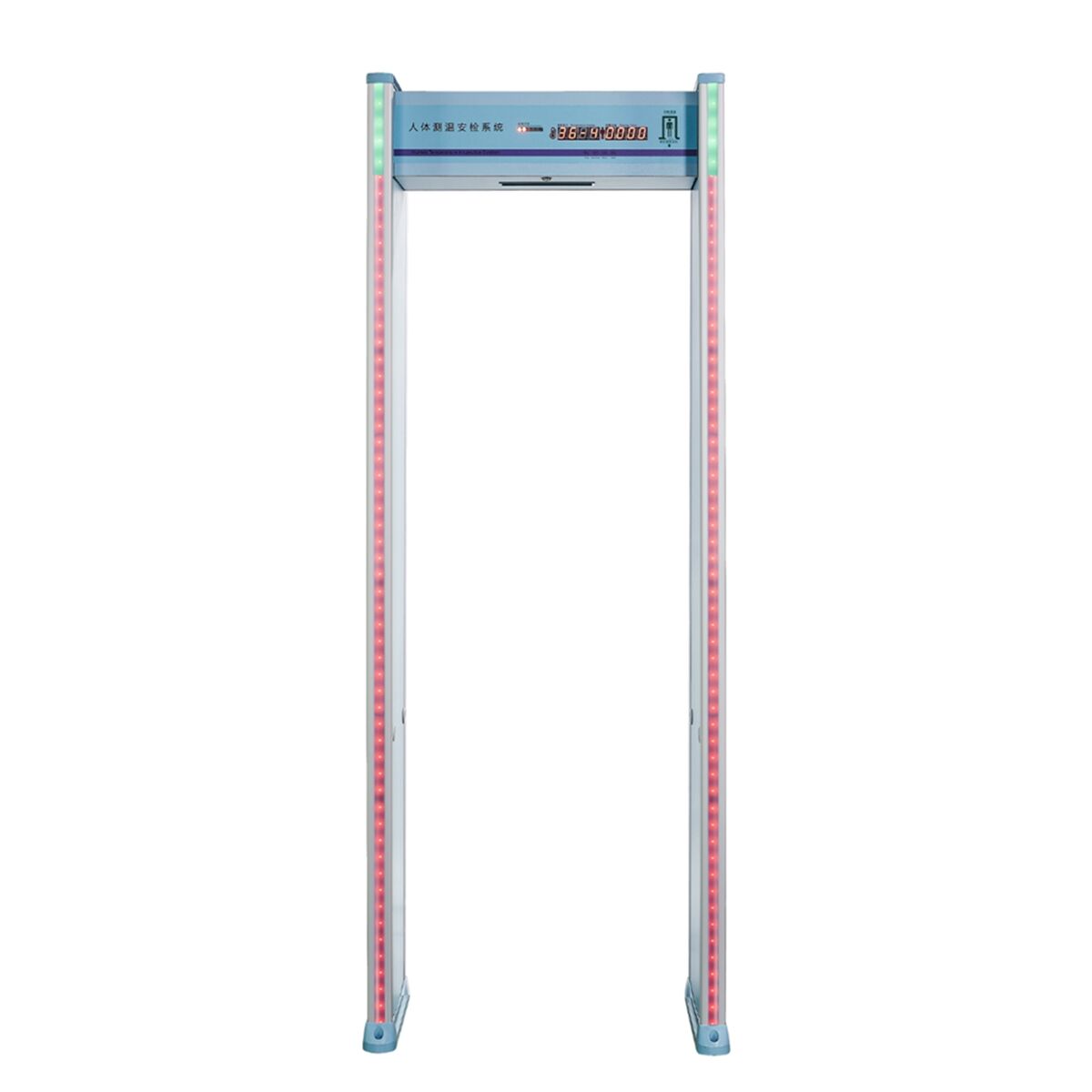

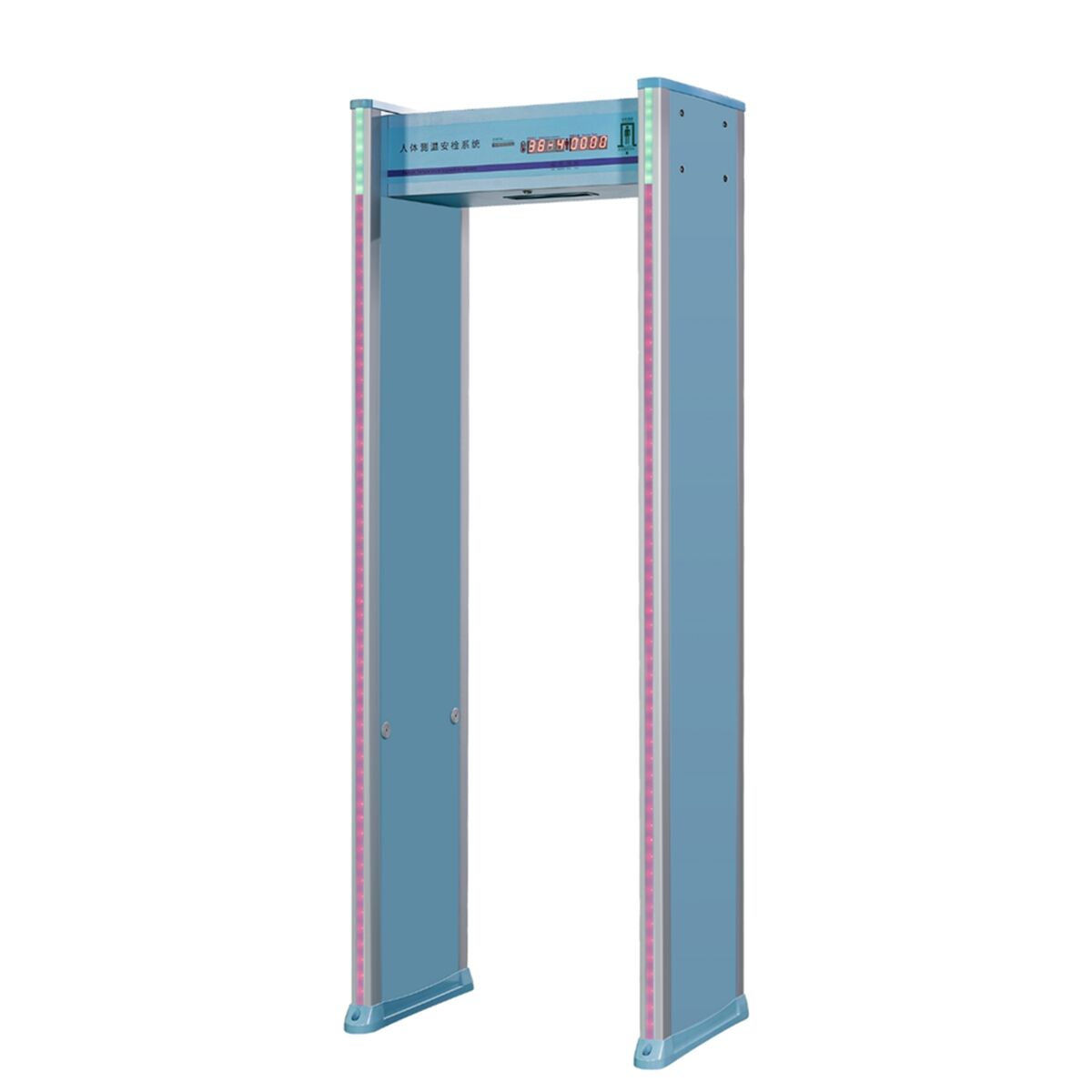

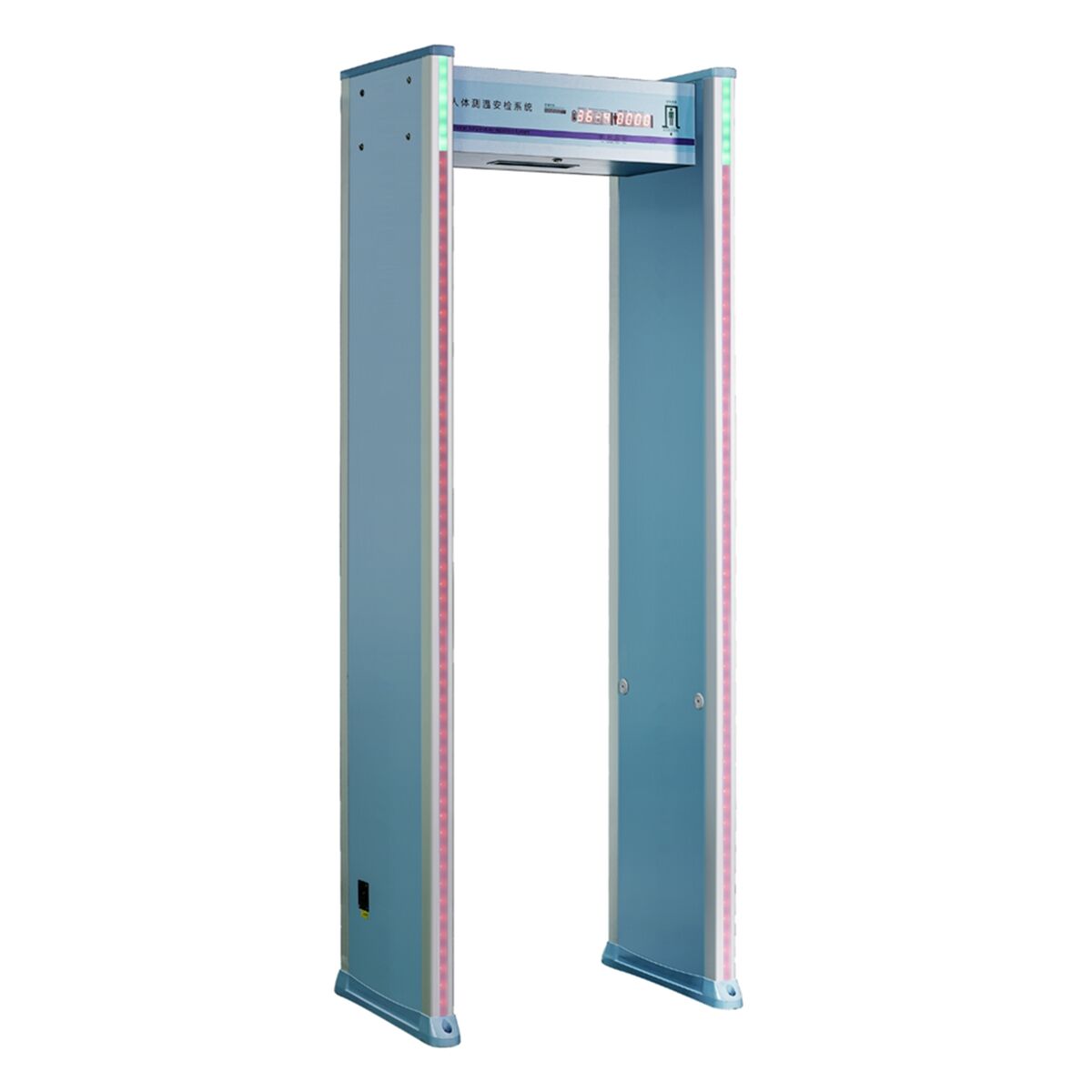

Walk through metal detector with body temperature checking S-T110

Additional information

Measurement range

0~99℃ (32~210.2°F)

Sensitivity

each zone is adjustable from 0 to 199

Working temperature

5℃~55°℃

Power supply

AC220V f: 50HZ

Power consumption

10W

Channel size

height 1990 (mm) * width 700 (mm) * depth 510 (mm)

Dimension

height 2230 (mm) * width 800 (mm) * depth 510 (mm)

Weight

68KG

Product Introduction:

This walk through metal detector with body temperature checking is a new developed safety inspection system that integrates human body temperature and metal detection, with international advanced metal detection technology and infrared temperature measurement technology. This device is specially used at this critical situation on COVID-19, it will generate an alarm when the passenger is carrying metal objects walk through, such as various controlled knives, weapons, metals, electronic products and other items containing metal, etc., and also accurately measure human body temperature. Widely used at government agencies, public security agencies, procuratorates, courts, prisons, detention centers, customs, airports, stations, stadiums, exhibition venues, entertainment venues, large gatherings and other places, as well as hardware, electronics, jewelry, military, coinage and other factories or industries.

Product Details:

Measurement range:  0~99℃ (32~210.2°F)

Material: The exterior is painted PVC, and the door body is equipped with wear-resistant foot covers above and below

Frequency band: 12 frequency bands can be selected

Sensitivity: The sensitivity of each zone is adjustable from 0 to 199

Working environment temperature: temperature 5℃~55°℃

Anti-interference ability: multiple doors in parallel with 0.6 meters interval

Accurate temperature measurement distance: 0.1m~0.3m

Temperature abnormal alarm: Alarm when reach highest/lowest temperature, support the alarm threshold setting of the highest and lowest temperature

Power supply: AC220V f: 50HZ

Actual power consumption: 10W

Package weigh: 68KG

Channel size: height 1990 (mm) * width 700 (mm) * depth 510 (mm)

Dimensions: height 2230 (mm) * width 800 (mm) * depth 510 (mm)
