| Sensitivity | Each zone is adjustable from 1-256 levels |
|---|---|
| Working temperature | -20℃~55℃ |
| Power supply | 220V 50HZ |
| Power consumption | <15W |
| Channel size | H1990mm*W720mm*D645mm |
| Dimension | H2200mm*W830mm*D695mm |
| Weight | 60KG |

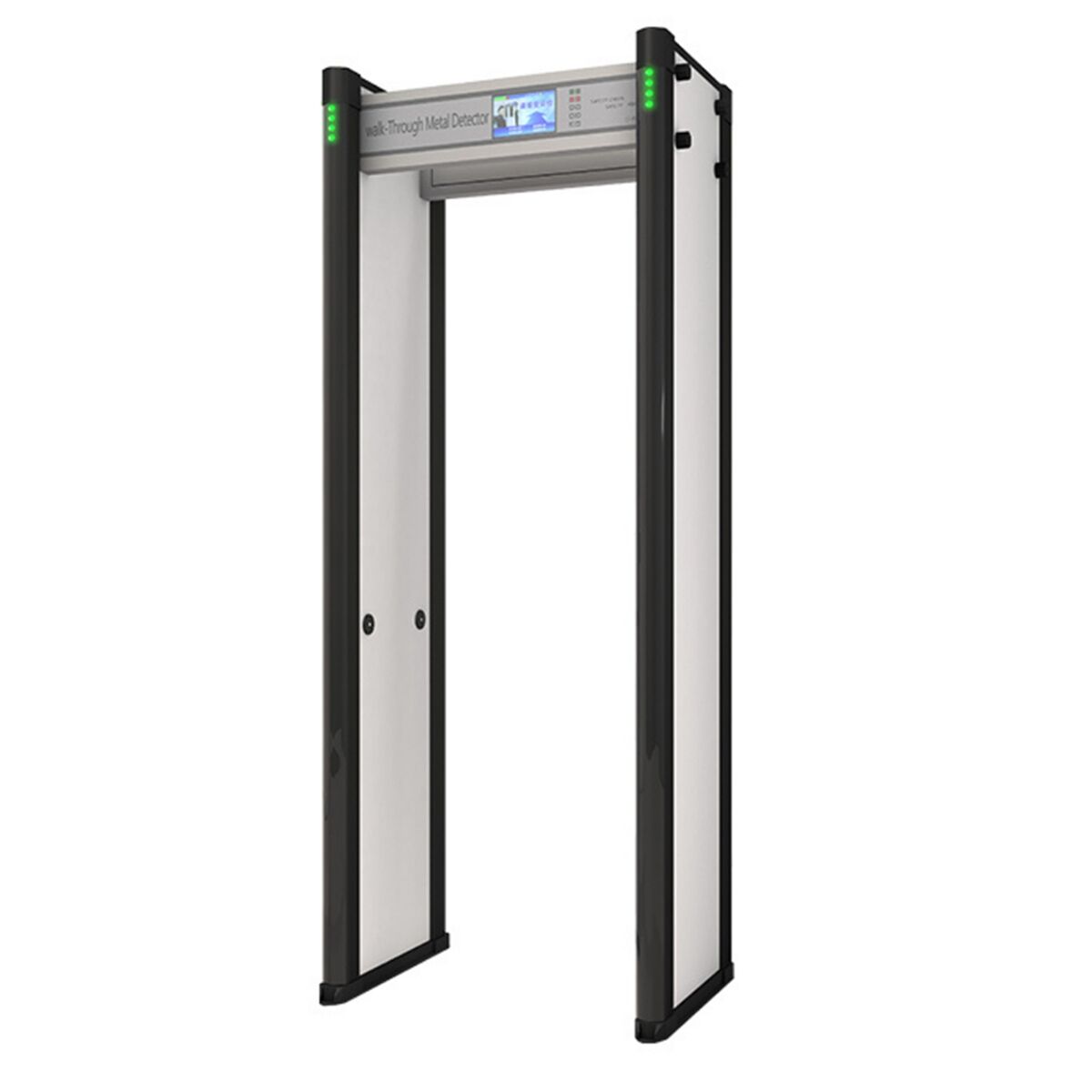

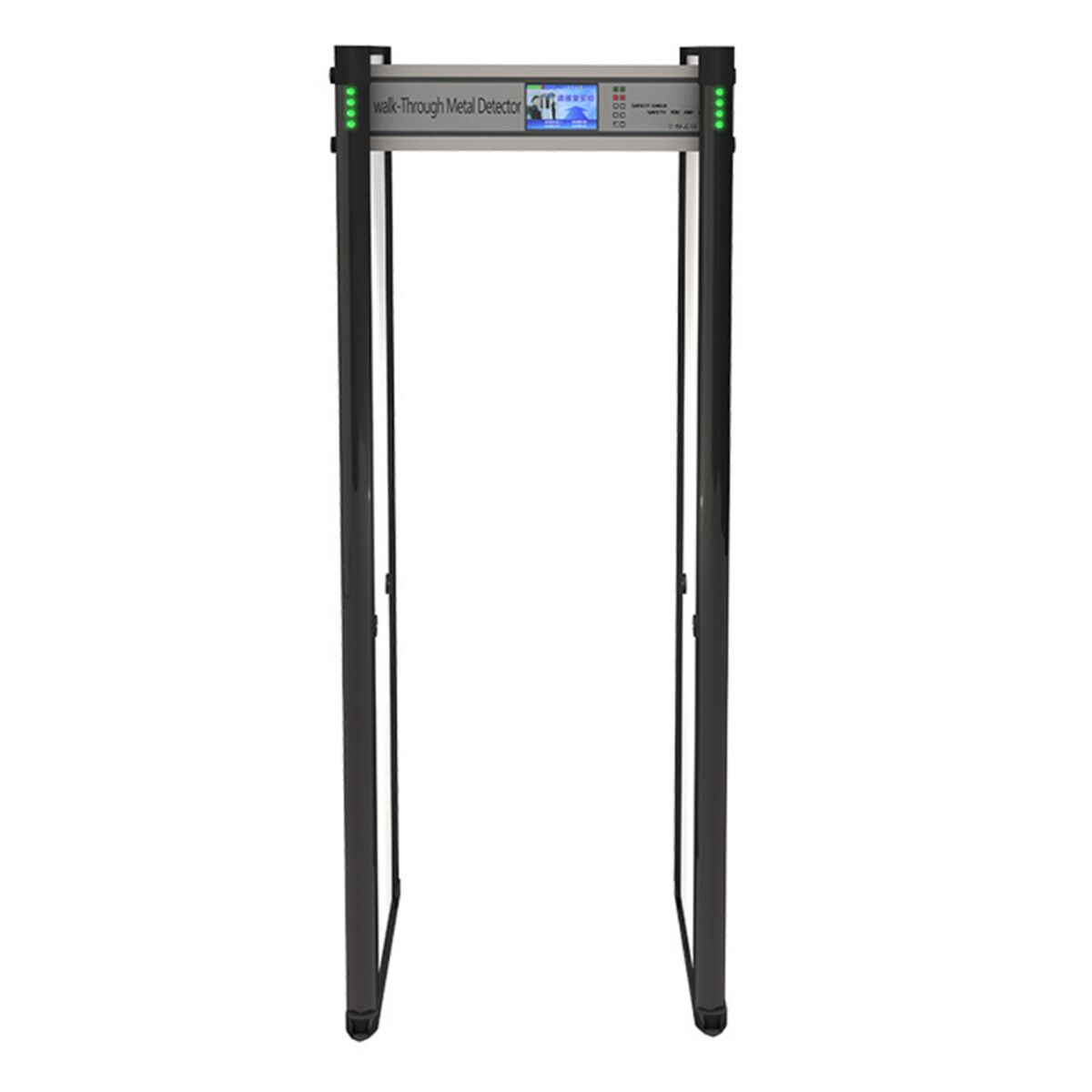

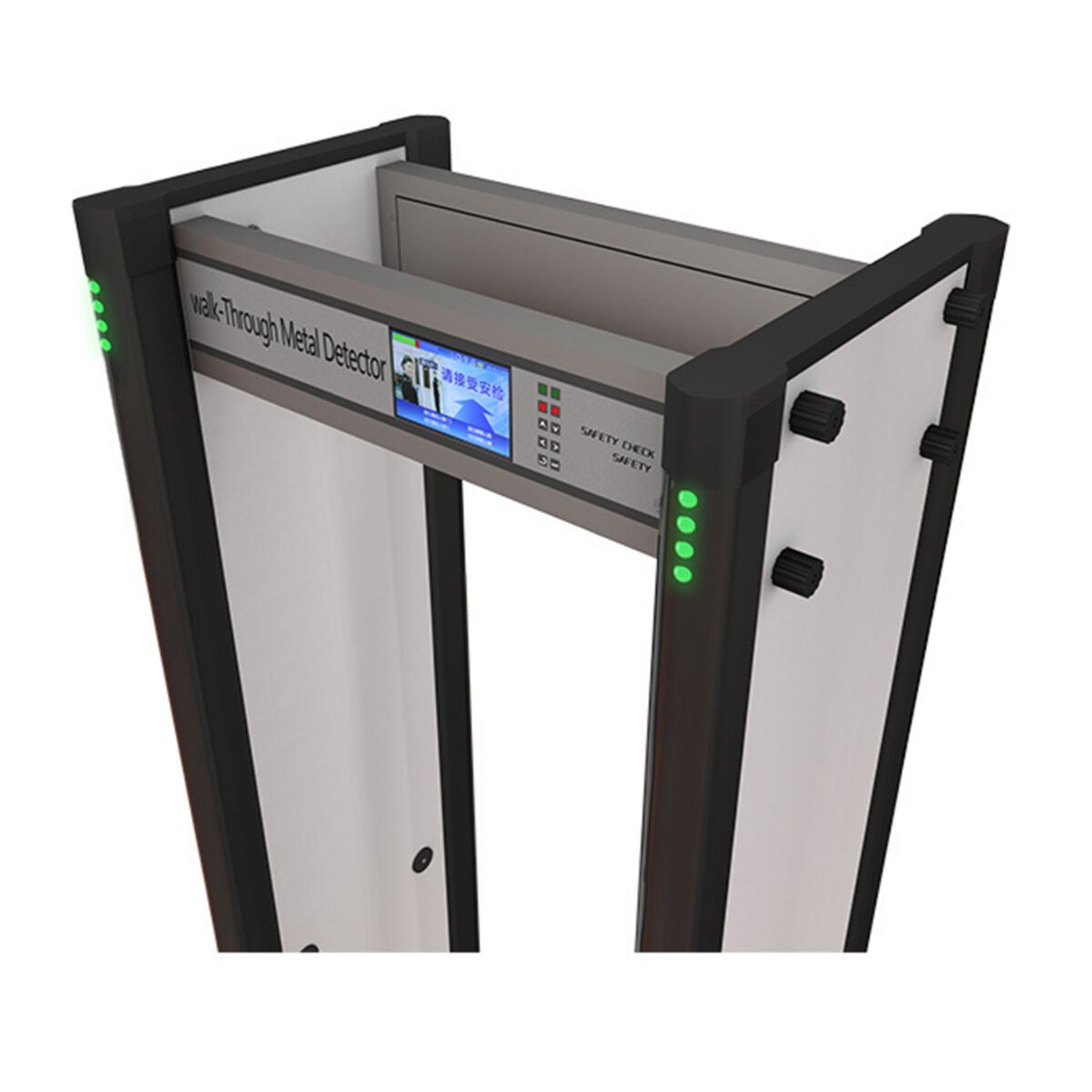

This all new generation of ultra-high-sensitivity walk through metal detector are designed to meet the highest level of security inspection requirements.
There is following advantages: multi-directional detection without blind spots; high detection sensitivity; strong anti-interference ability; multiple detection areas, each area can be individually set sensitivity: self-diagnosis program, power-on self-check, 7 Large-inch LCD capacitive touch screen; using high-strength materials, can be fireproof, anti-corrosion, anti-vibration; background environment interference that can be monitored in real time. It is widely used in airports, subways, railway stations, customs, public security, procuratorate, law, prisons, sports events, schools, large-scale exhibitions and outdoor emergency security work. The highest detection sensitivity can detect metal objects with a dime coin size without any direction, and can quickly remove key chains, jewelry, belt buckles, mobile phones and other living metals with one touch, and protect against prohibited and dangerous metal products (such as controlled knives, axes, guns, improvised metal explosive cans, etc.) have extremely high detection capabilities.
It has the characteristics of high sensitivity, strong stability, good accuracy, wide adjustable range, easy installation, low power consumption and long service life.
★ It can work close to large metal machines (such as X-ray baggage scanner machines) as usual.
★ All metal detection can be carried out, and multi-directional detection without blind spots can be realized.
★ The ground sliding detection alarm can be attached to the ground accurately and without missing reports.
★ Multi-defense zone technology: The sensitivity of each detection zone can be adjusted arbitrarily (with adaptive adjustment technology), and there is a high-brightness LED alarm position indicator to accurately locate the hidden contraband.

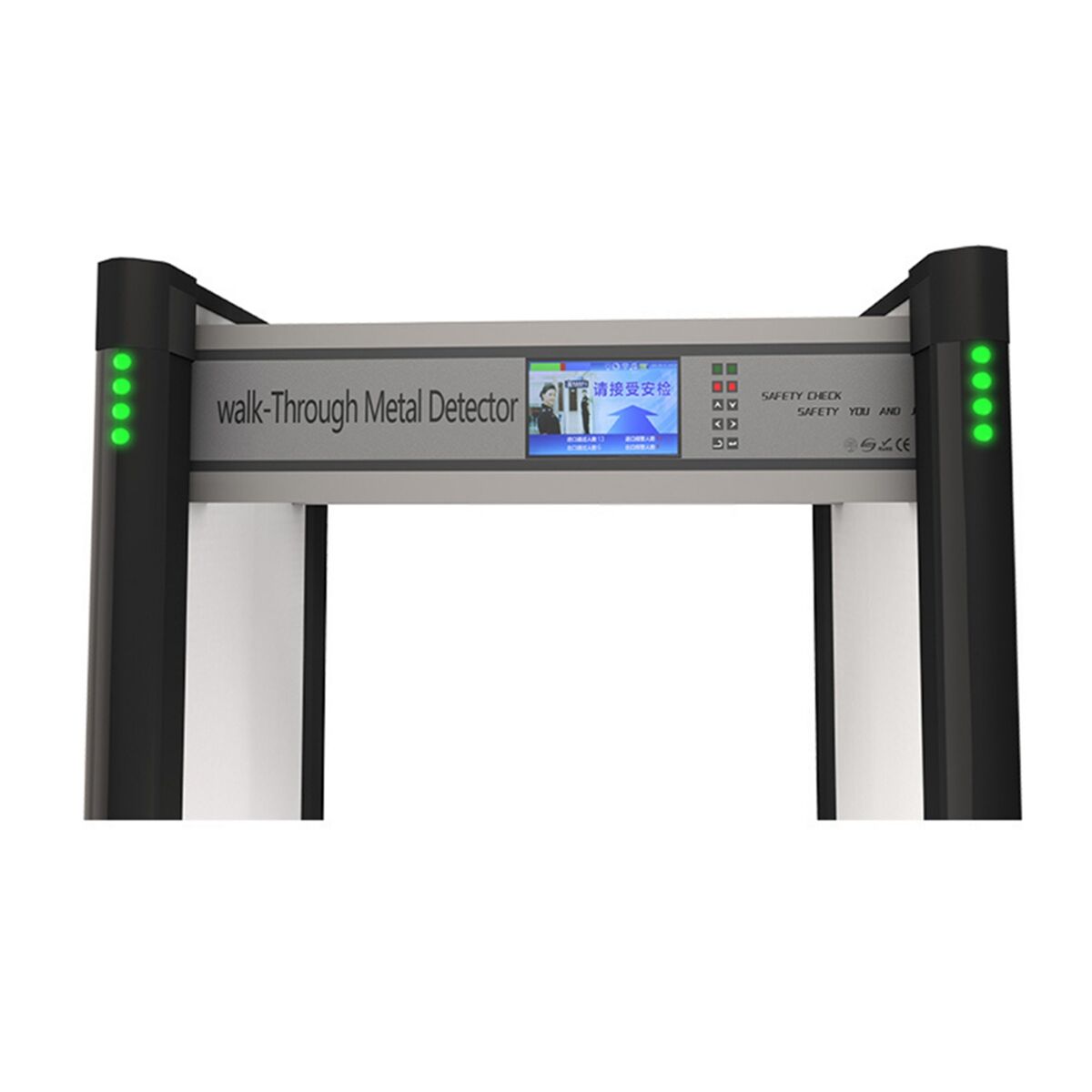

★ Large screen technology: 7-inch operating LCD screen, new debugging program interface, the operation is more simple and easy to understand.
★ Detecting objects: it can detect magnetic, non-magnetic and alloy metals.
★Superior shell protection technology: IP53 superior protection performance.
★ Anti-electromagnetic interference: DSP digital signal processing technology is used to automatically scan and detect the mechanical and electromagnetic interference of the installation site environment, automatically adapt to the working environment, and have high immunity to electromagnetic and mechanical interference; no periodic calibration is required, which greatly improves anti-interference ability.
★ Working frequency band: up to 50 working frequency bands, multiple devices work side by side at the same 20cm without interfering with each other.
★ Flying object detection function: It can prevent people from passing items through the security door when they do not pass the security gate.
★Professional detection program: The system has built-in detection standard programs for many different occasions.
★ Power-on self-adaptive diagnosis: The system self-adaptively diagnoses power and energy when starting up, and displays faults.
★ Adaptive debugging system: when the system enters the debugging system, it can adaptively debug the detection standard.
★ Detection area: Based on the basic structure of the human body, it is divided into free zone detection, so that the sensitivity distribution of the detection area is not only free of blind areas but also more uniform.
★ Sensitivity of detection zone: The sensitivity of a single zone can be as high as level 1-256.
★ Automatic wake-up: The system will automatically enter the power saving mode when there is no detection within 5 minutes, and the system will automatically wake up and enter the working mode when an object passes. To
★Identification function: When the device detects metals of different sizes, it can emit different frequencies of alarm sounds and use numbers to distinguish the sizes of metals, and they can be displayed directly on the top of the screen.
★ Graphical reminder function of metal content: When a metal object enters the detection area, the indicator corresponding to the area will light up. When a metal object passes through the security gate, the doorpost lamp will display the corresponding location, the display screen can display the position of the metal object through a human figure, and the metal content can be displayed through the progress bar.
★ Alarm data statistics: Equipped with intelligent passenger flow and alarm counters, real-time automatic display of the number of alarms and the number of people entering and exiting, and 100,000 records of large-capacity information for real-time review.
★ Alarm function: alarm light, alarm sound, arbitrary adjustment settings.
★ Alarm sound mode: The system has a variety of optional alarm sound modes to adapt to different occasions.
★ Password operation: The password protection only allows authorized personnel to operate, and the security is higher.
★ Human body safety: harmless to pacemaker wearers, pregnant women, magnetic media, etc.
