| Tunnel size | 503mm(W)*303mm(H) |
|---|---|
| Conveyor speed | 0.22m/s |
| Conveyor max load | 60KG |
| Penetration resolution | 24AWG (0.511mm) |
| Penetration | 15mm |
| X-Ray dosage each inspect | ≦1.5μSv/h |
| Boundary leakage | ≦0.1μSv/h |
| Power consumption | <1KW |
| Operation power | 220V AC(±10%) 50/60Hz |

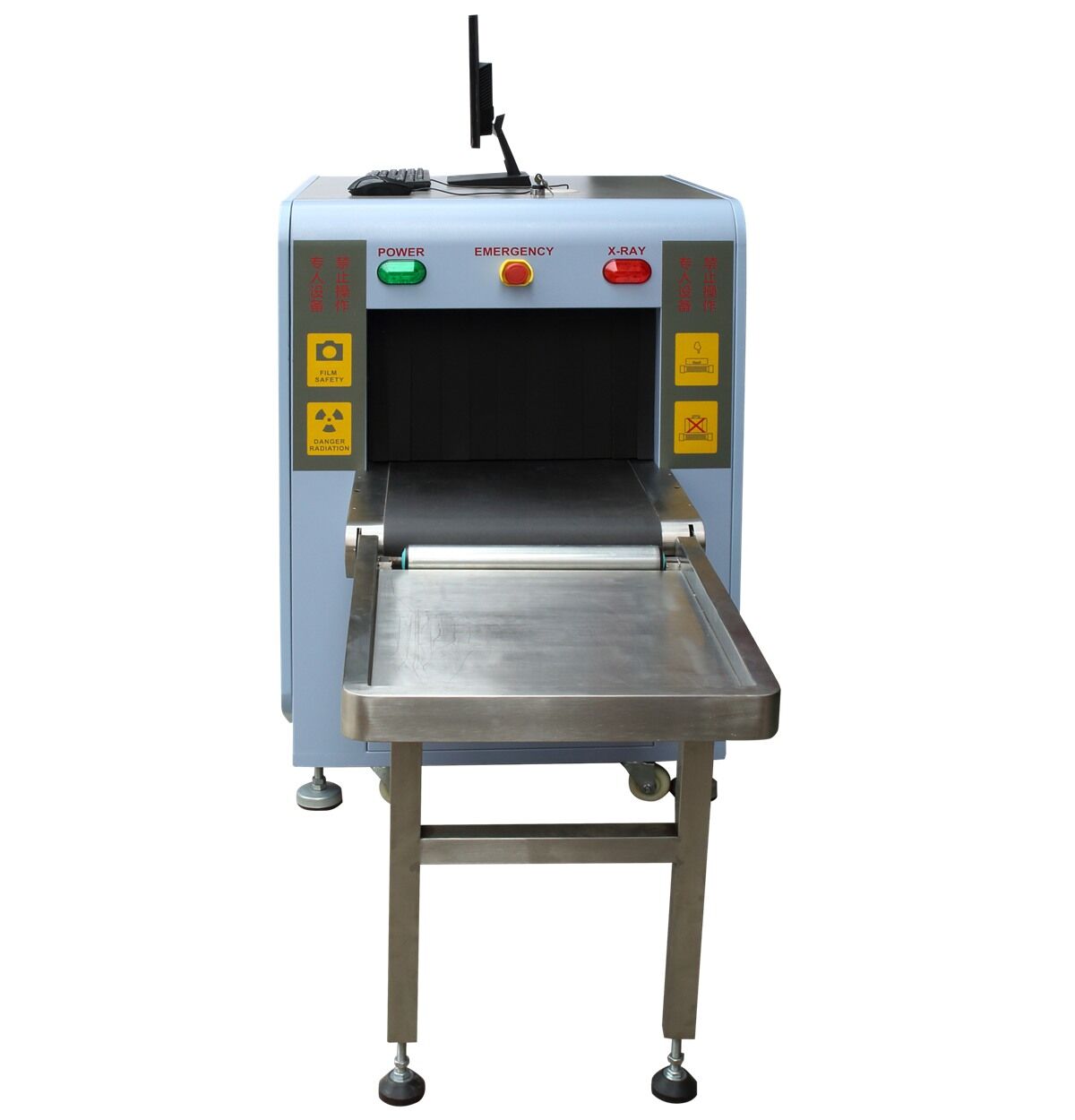

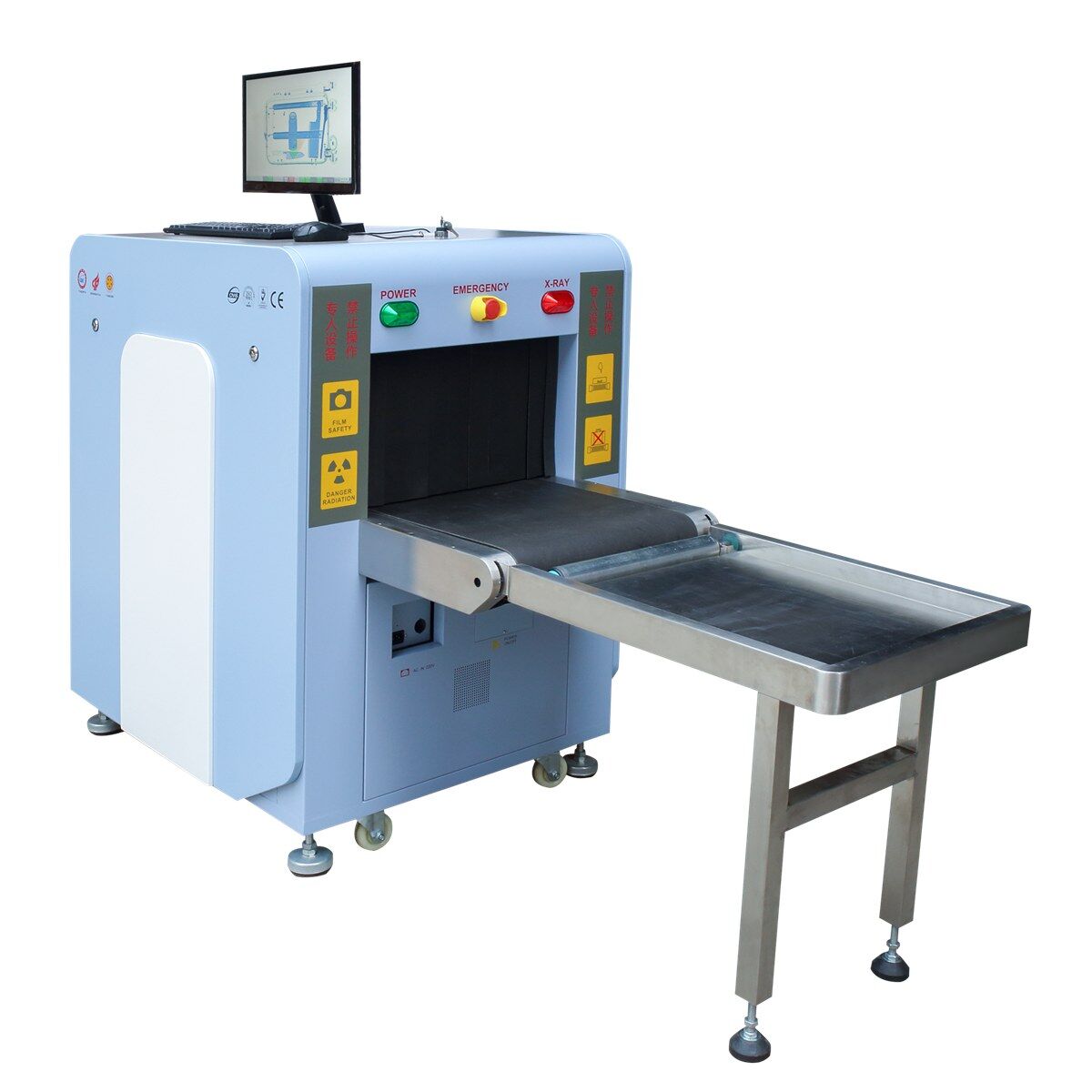

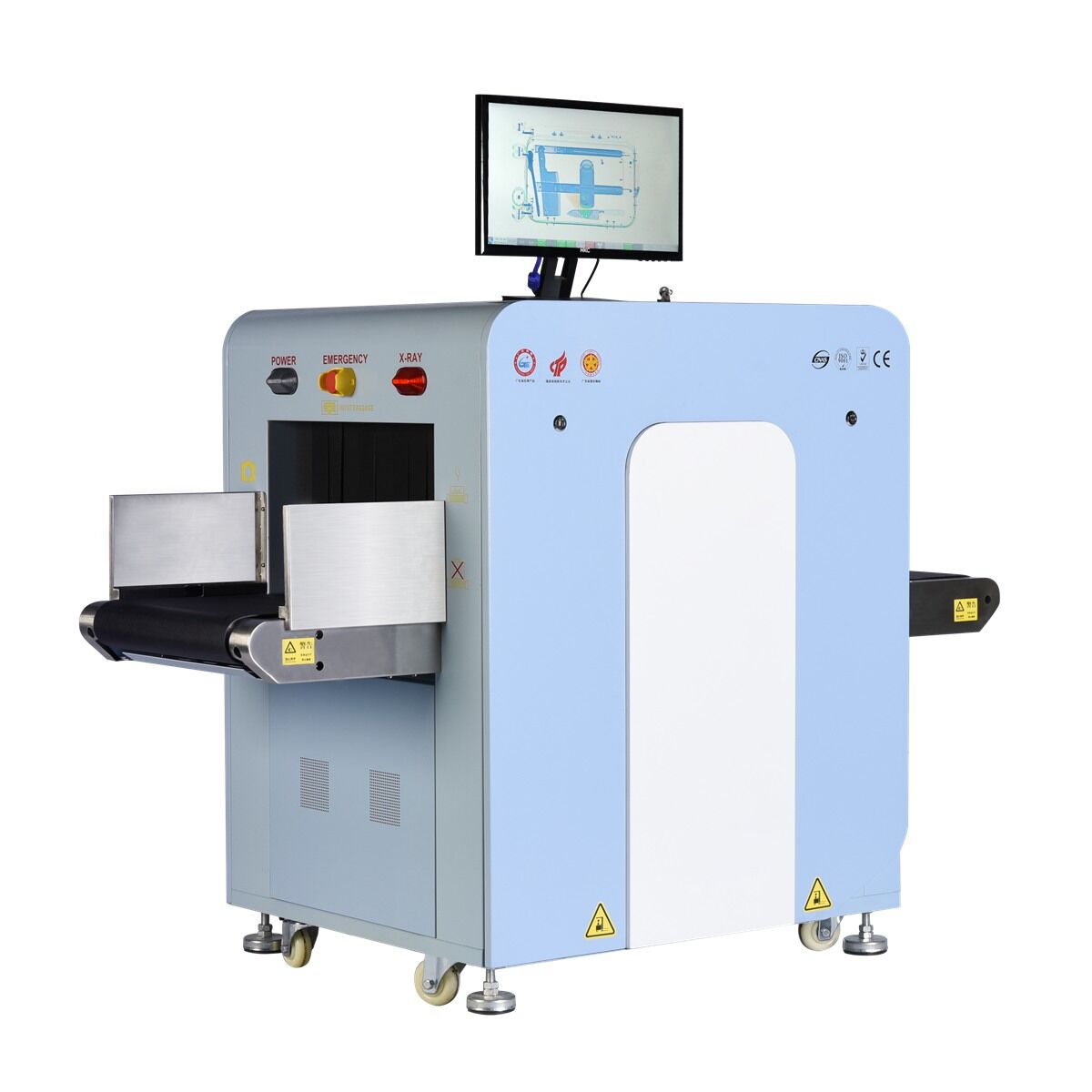

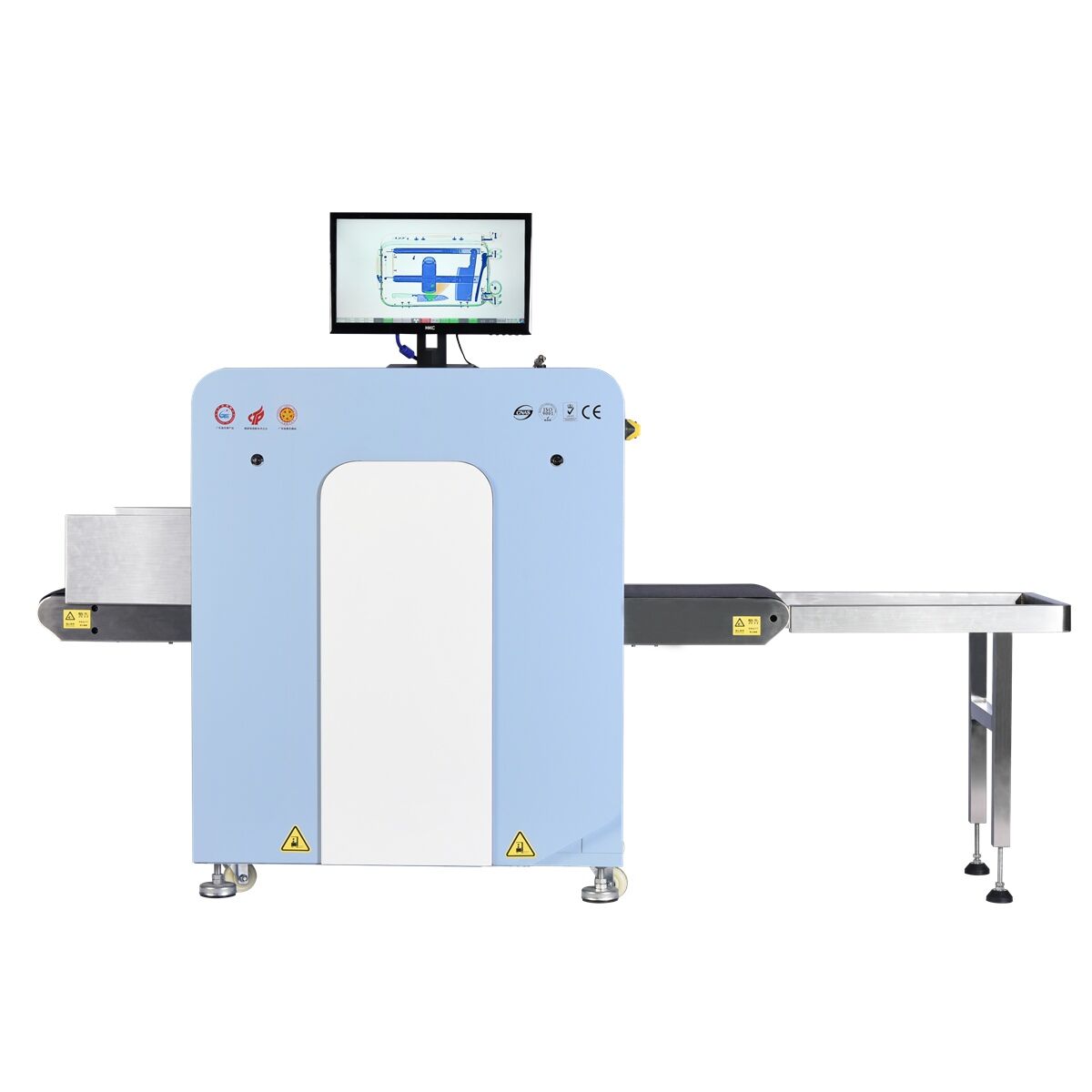

S5030A X-ray baggage scanner has been certified by the Ministry of Public Security of China, with internationally leading performance parameters. It can penetrate 15mm steel plates and has a line resolution of 0.0787mm single solid copper wire. There is characteristics of one-key switch on/off, energy saving and environmental protection.
With advanced substance recognition function, it can distinguish organic, inorganic and mixtures according to the effective atomic number of the detected objects, and present in different colors, which will help the operator to recognize and judge the image.
Widely used in: public security and armed police, courts, prisons, subways, customs stations, ports, logistics and express delivery, hotels, schools, factories and enterprises and other important departments in public places.
Mainly used to detect contraband and inflammable and explosive goods hidden in small and medium-sized goods, parcels, mail, luggage and other objects, such as controlled knives, guns, fireworks, alcohol, gasoline, sulfuric acid, etc.
High penetration: The line resolution is 0.0787mm (40AWG), and the penetrating power is 15mm steel plate.
Multifunctional image processing: Single image 1920*1080 high-definition image display, pseudo color/black and white color optional. Color / black and white image switching, easy to distinguish the type of object. Provide dangerous goods image insertion function (TIP function). Save pictures in multiple formats and support to save as to a USB storage device.
Low X-ray leakage dose rate: The X-ray dose rate around the equipment is close to the natural background level, in line with international health and safety standards.
Quick emergency stop: Software or hardware emergency stop equipment can be used arbitrarily according to actual operating conditions to deal with various emergencies.
Device modular design: Each module handles different tasks separately, which is convenient for fault detection and maintenance.
Low Noise: The noise of the whole machine does not exceed 58dB (A) at any place 1m from the outer surface of the equipment.
Easy Operation: According to the ergonomic principle, the special keyboard selection, image display and human interaction interface are designed to effectively improve the ease of use of the equipment.
Customization: A variety of hardware configurations are optional: remote console, auto-sensing, surveillance camera, LED advertising screen, GPS positioning, etc. can be arbitrarily selected.
