Portable High-definition Intelligent Vehicle Security Inspection Video Detector

Features:

◆ Easy to carry, strong flexibility, simple operation and greatly reduce work intensity.

◆ The 12V 4000mA Ni-MH rechargeable battery can be quickly charged and equipped with a protection device. It will automatically terminate after being fully charged. Normal using time can last about 3 hours.

◆ It adopts 7-inch high-resolution 1920×1080 display, power consumption is less than 9W, the display is clear and the system working time is effectively extended. The monitor has an angle adjustment function, you can choose an angle that is more suitable for you.

◆ There is a wider field of view because of good quality high-definition wide-angle camera. With our unique auxiliary lighting group design, can ensure that it works in a dark environment, avoiding the shortcomings of similar products that will appear on the side of the flares. It is matched with 120° of vertical direction and 360° of horizontal rotation angle, the viewing angle reaches more than 400°, so that there is no blind spot during the detection.

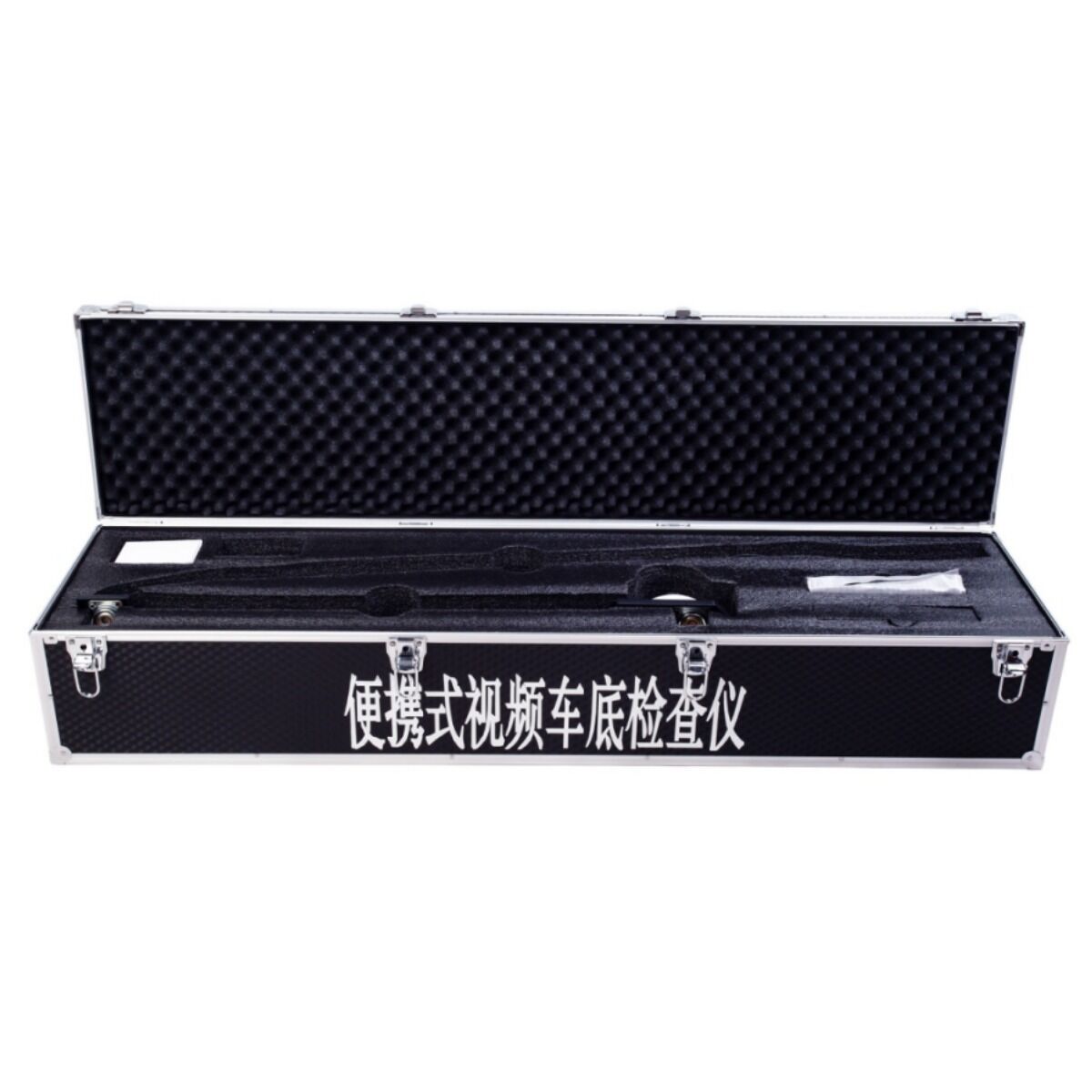

◆ This device is a two-stage folding structure, the maximum opening angle is 190°, and the opening length is 2235mm. It can be detected in deep area. Different from the steel pipe type fuselage on the market, our fuselage is made of 1.0mm steel sheet to be stamped and formed, and the total weight is only 2.35 kg, which is beautiful and lightweight. The operation is extremely labor-saving.



Applicable fields:

1.  Suitable for inspecting explosives at parking cars at sports events, important meetings, local police stations, high-end hotels, large factories, clubs, stadiums, theaters, conference venues, etc.
2. Suitable for airport security, parking inspection, military area inspection, personal private car inspection, etc.



Parameter:

Display:

LCD size: 7.0 inches

Display resolution: 1920(H)*1080(V)

Display angle: 12 o’clock direction

Display brightness: 500 cd/㎡

Viewing angle: 140/120 degrees (horizontal/vertical)

Camera:

Lens: 1/2.8″ CMOS;

Pixel: 10 million pixels 1080P@ 25, 30 frames

Minimum illumination: Black and white 0.02Lux (infrared light on)

Infrared fill light: 3 high-power automatic fill light (non-traditional infrared fill light)

Signal/scanning system: PAL/NTSC; progressive scan

Electronic shutter: Automatic/manual (1/5-1/50000 seconds)

Day and night mode: ICR filter

Fixed focus: 2.8mm

Horizontal viewing angle: 112

Vertical angle of view: 84

Infrared distance: 20 meters

Horizontal speed: 360 degree rotation, speed 0-30°/S; viewing angle up to 400°

Vertical speed speed: 0-20°/S

Vertical range: 0°-120°; viewing angle up to 165°

Waterproof grade: IP68

Maximum image size: 3200*2560

Power& power consumption: DC 12V1A, 9W

Working temperature and humidity: -35℃+65℃, ≤90%RH (no frost)

Battery: 7500mA

External power input: DC 7~28V

Working current: ＜180mA

Device folded size: 1180x192x180mm

Device whole size: 2235x192x180mm

Display dimension: 180x132x19.5mm

Display weight: 500g

Net weight: 2.35kg

Gross weight: 8.5kg
