Nonlinear Junction Detector

How is this Nonlinear Junction Detector work?

Nonlinear junction detector emits S-band fundamental wave to the target area or object, and the receiver captures the second and third harmonics generated by the target object. Artificial intelligence algorithm is used to analyze the harmonic law, so as to detect and identify the electronic equipment with non-linear junctions.



Where is this Nonlinear Junction Detector mostly used?

1. Government Bureaus

National government bureaus such as police, justice, prisons, education, troops, and confidentiality bureau have strict requirements for information security and leakage prevention. Before major meetings, confidentiality departments must check the high-level conference rooms, chief officer’s meeting room, and foreign guests reception room to prevent eavesdropping, secret shooting and other illegal equipment hidden in undesirable places which will lead to the confidential information, technology leakage, causing irreparable economic losses to the country.



2. Security inspections for large-scale events

At the large-scale international summits, business negotiations and other large-scale events initiated by the country and local municipal governments, in order to ensure the personal safety and information security of politicians, business leaders and participants in various countries, the organizing committee needs to appoint a professional security team to carry out safety inspection in advance and strict blockades are carried out on the premises. Nonlinear junction detectors are used to detect bugs, secret shooting equipment, recording equipment, remote-controlled explosive devices and other illegal equipment to ensure the safety of the event site.



3. Confidentiality inspection of commercial organizations

In order to ensure that trade secrets are not leaked, large commercial organizations such as listed companies, multinational companies, and industry associations need to conduct strict information security checks at internal high-level conference rooms, chairman’s offices and business negotiation venues to prevent mobile phones and eavesdroppers and other SIM card devices hidden in the wall or corners which are not easy to find out. With the Nonlinear Junction Detector to ensure that it will not be eavesdropped, recorded or monitored in the important meetings, major business decisions, business negotiations and other activities, to make sure the security of commercial confidential information.



4. Anti-cheating inspection in education industry

In places such as college entrance examinations, middle school entrance examinations, civil service examinations, and college scoring, the nonlinear junction detector can be equipped at the entrance of the examination room to prevent cheating in the exam which the device mostly will be hidden in the ears, glasses or other parts of the body, try to ensure the fairness and impartiality of public selection.



5. Personal residence or hotel room privacy protection inspection

In order to ensure personal privacy and security in private spaces such as personal residences, hotel rooms, shopping malls changing rooms, toilets, and entertainment venues, the nonlinear junction detector can be used to safely detect the surrounding environment to ensure that there are no hidden pinhole cameras, eavesdroppers, voice recorders, and other electronic equipment to ensure personal privacy and safety.

What highlights for this Nonlinear Junction Detector?



◆ High positioning accuracy

The product adopts 2400MHz radio frequency detection technology, which has the characteristics of high-precision positioning.



◆ Strong semiconductor recognition ability

Built-in spectrum analyzer that supports 2nd and 3rd harmonic detection, which can quickly and effectively identify devices and equipment containing semiconductors.



◆ High sensitivity

Built-in high-gain antenna, large detection distance, especially for SIM card equipment, has a high sensitivity, to ensure that secret recorder, mobile phone and other electronic devices can be quickly detected.



◆ Low false alarm rate

The built-in non-destructive detection algorithm greatly improves the detection ability, and the false alarm rate is extremely low.



◆ Safe and reliable

The characteristics of the equipment meet the requirements of electromagnetic radiation, and it is absolutely safe for the human body.



◆ Flexible and simple operation

The interface is simple and intuitive, with few buttons and simple, convenient for manual operation;



◆ Friendly interaction interface

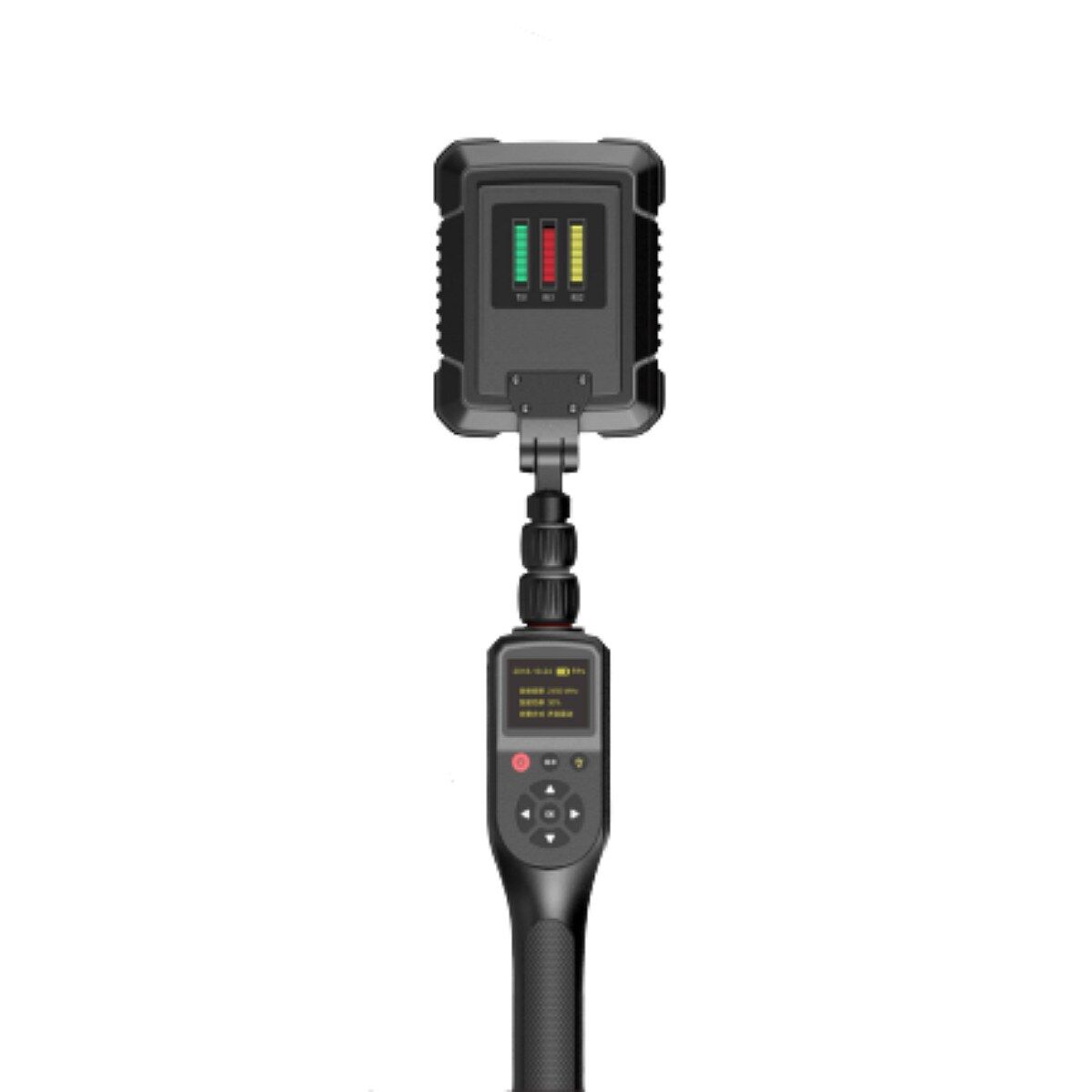

Support OLED visual graphic interface, vividly display power transmission status and the 2nd ~3rd harmonic graphics, easy for inspectors to operate.



◆ Cost-effective

High cost-effective, cost-saving and excellent performance.



Technical Parameter

Product working frequency: 2400MHz

Working voltage: 12V

Frequency range: 2.404GHz-2.473GHz

Receive 2nd~3rd harmonic range:

4.808GHz-4.958GHz,

7.212GHz-7.437GHz

Transmitting power in pulse mode (maximum): 0~4W (EIRP)

Receiving sensitivity: ≤-140dBm

Adjustable range of transmit power: 0-1W

Receiving dynamic adjustable range: 30dB

Battery working time in maximum power pulse mode: 2H

Battery type: replaceable lithium battery, standby 4H

Charging time: fast charge 2.5H/block

Interactive interface:

OLED displays the intensity of the received harmonic signal

Support audio prompts, connect headphones

Support vibration notification

Detection distance:

GPS module: 400-500mm

Mobile phone: 150-220mm

SIM card: 25-33mm

Product size: 548(L)*170(W)*113(H)mm

Carton size: 680(L)*320(W)*170(H)mm

Product weight: 1.5kg

Working temperature: -20℃~45℃

Working humidity: no more than 85%, no condensation
