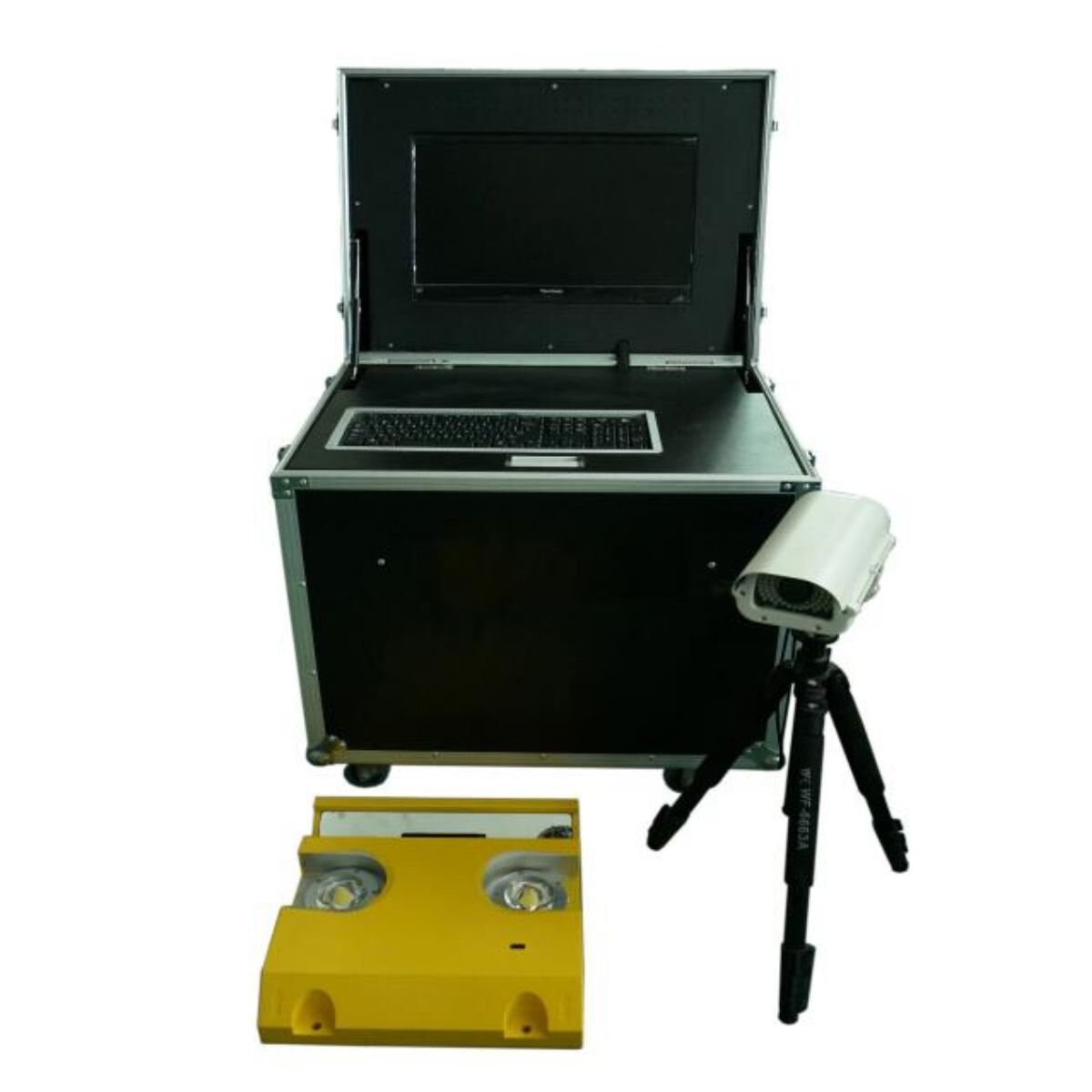

Movable Car Chassis Safety Inspection Scanner

How is this movable car chassis safety inspection scanner works?

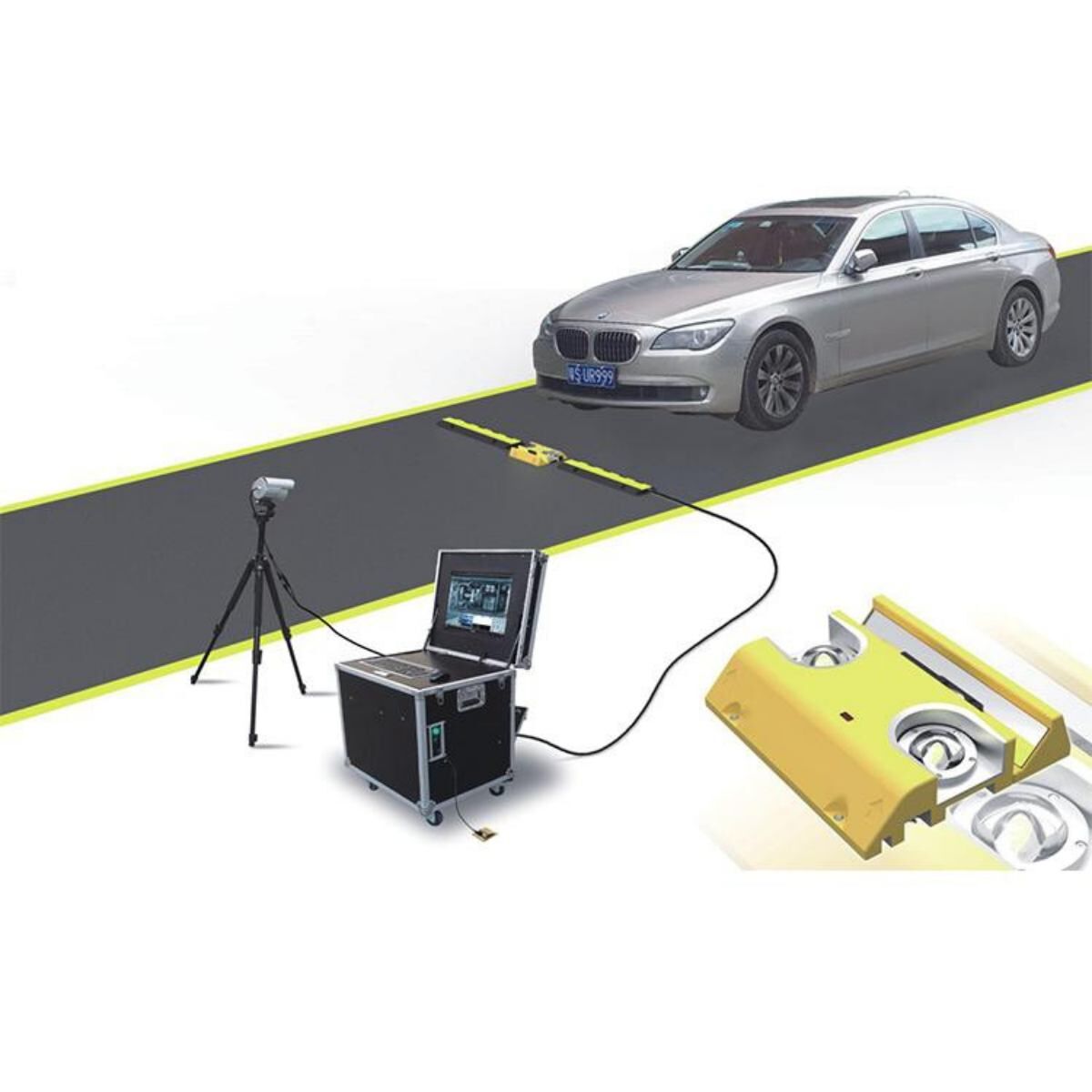

This car chassis safety inspection scanner is fully automatic, non-external trigger condition to scan the bottom of vehicle. When the vehicle has passed the car chassis safety inspection scanner at a speed of 1~60km/h, the system will display the image within 1s after the vehicle has passed. And when the vehicle is stationary in the car chassis scanner image collection area for a certain period of time and then continues to pass through the car chassis scanner, the under-vehicle image is displayed intact.

Where is this movable car chassis safety inspection scanner apply to?

◆ Airports, prisons, embassies, ports, docks, customs, border entrance and exit inspections and other government departments, as well as large-scale public parking lot entrances and exits, toll gate inspections are used to check whether there are prohibited items in and out of vehicles.

◆ Vehicle safety inspections are carried out at the entrances and exits of large-scale events, conferences, assemblies, and international exhibitions.

◆ It is used for security inspection, explosion-proof, and safety inspection of the bottom of military vehicles, etc.

What this movable car chassis safety inspection scanner’s other more characteristics?

◆  Colorful / Black & white linear array CCD scanning technology for dynamic imaging

◆ Scanning resolution:  2048 line CCD

◆ Chassis storage or loading time:  <1 second

◆  Vehicle bottom image display mode: Large-format horizontal display

◆  Chassis image storage format:  Standard BMP image format or JPEG

◆ System interface language: English, French, Spanish, Portuguese, Russian, Arabic, Turkish, or other customized language

◆  Car bottom image data transmission interface:  Network RJ45

◆  Scene image display:  ≥1 channel

◆ Image retrieval function test: can retrieve stored vehicle bottom and license plate images according to date, time, license plate number, and other information

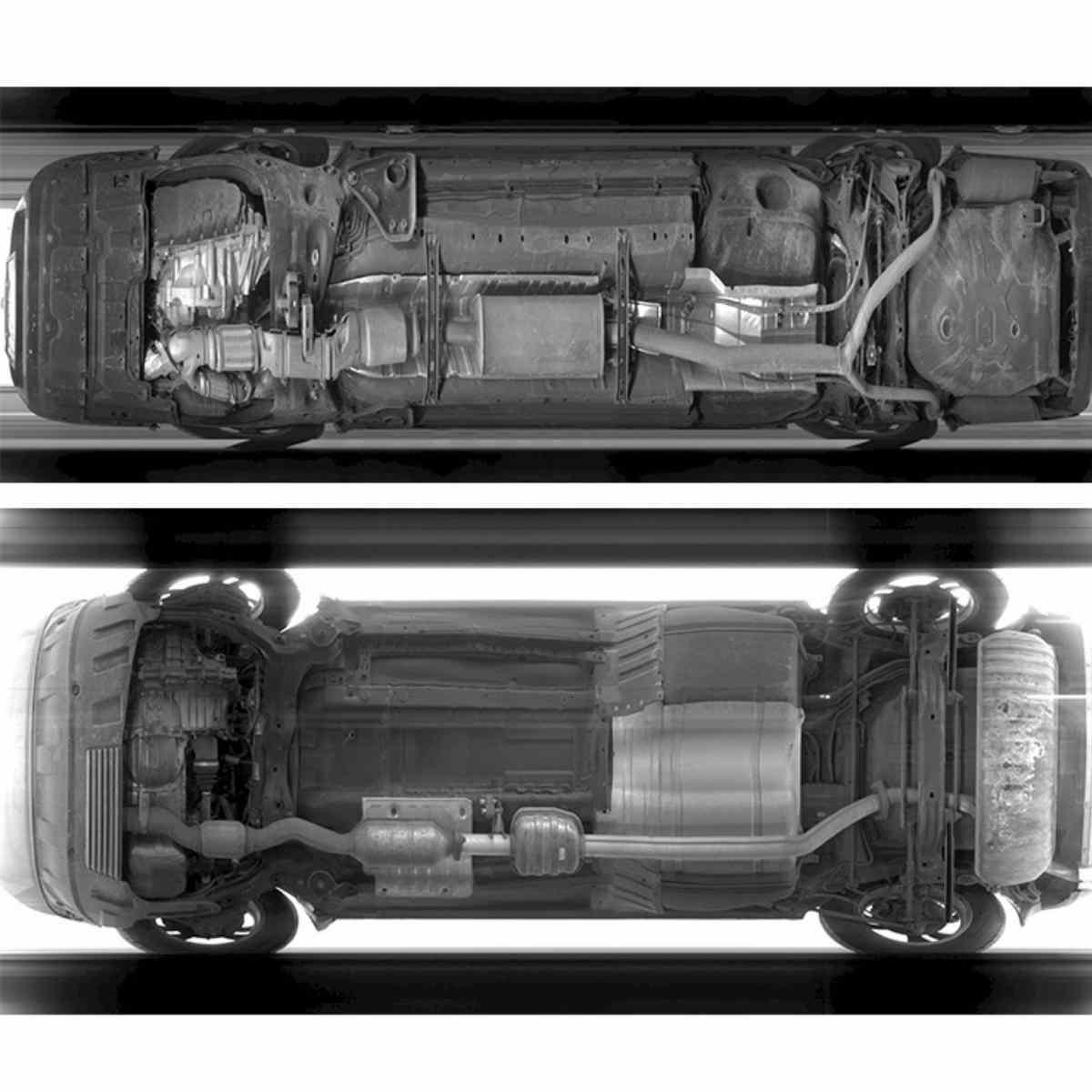

◆ The resolution of the car bottom image: 12000*6144

◆ Automatic image storage and deletion function: Save no less than 10,000 pictures, and automatically delete expired pictures

◆ Suspected prohibited items auxiliary identification function: The software automatically finds and identifies suspicious prohibited items on the chassis of the vehicle, and automatically selects and prompts the location of the suspected prohibited items through the software

◆ Adopting unique open wide field of view vehicle bottom image acquisition technology design

Technical Parameter:

1. Scan mode: fully automatic, non-external trigger condition scan mode
2. Maximum scanning rate: 18kHz
3. Testing speed: 1-60km/h, suggestion ≤30km/h;
4. Field of view angle: 170 degrees
5. Scanner data cable: 10 meters (Length can be customized based on actual usage)
6. Auxiliary lighting: 160W
7. Lighting components: Two single sealed LED surface light sources; Service life: 50000h

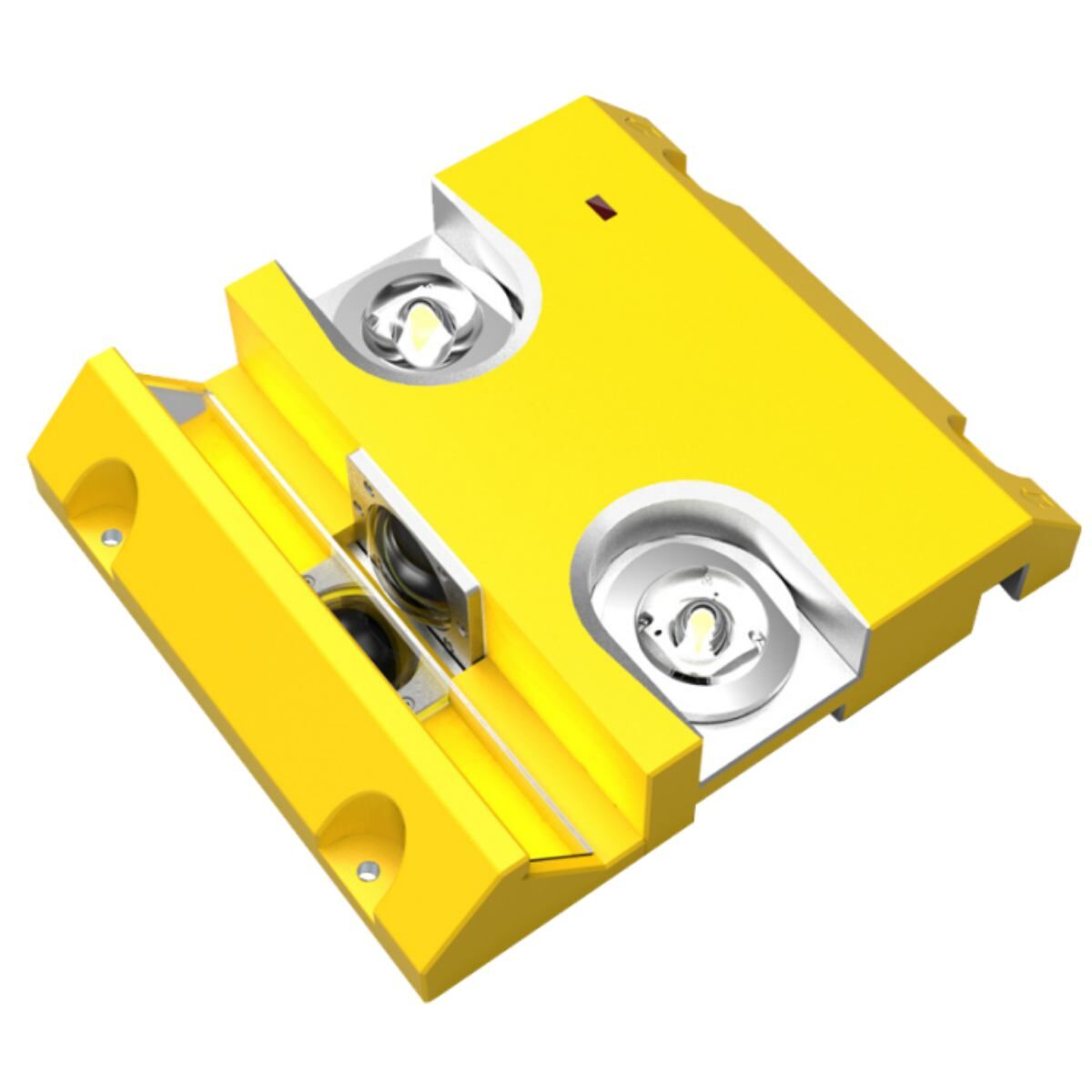

8. Car bottom image scanner: With a unique open wide field of view car bottom image acquisition technology
9. Carrying weight: 15ton
10. Waterproof rating: IP68
11. Scanning device weight: 28KG
12. Scanning device dimension: 1400×800×1000mm
13. Communication interface: RJ45
14. Storage temperature: -40°~+75°
15. Working temperature: -10°~+60°
16. Working voltage: 110-240V AC, 50-60HZ
17. Detected vehicle chassis width: ≦80cm
