| Dimension | 2495mm(H)* 1295mm(W) |
|---|---|
| Weight | <600kg |
| Power supply | 220V |
| Power consumption | < 800W |
| Working temperature | -5℃~45℃ |
| Operation mode | non-contact scanning |
| Inspection time | Scan+Imaging: ≤3 seconds |

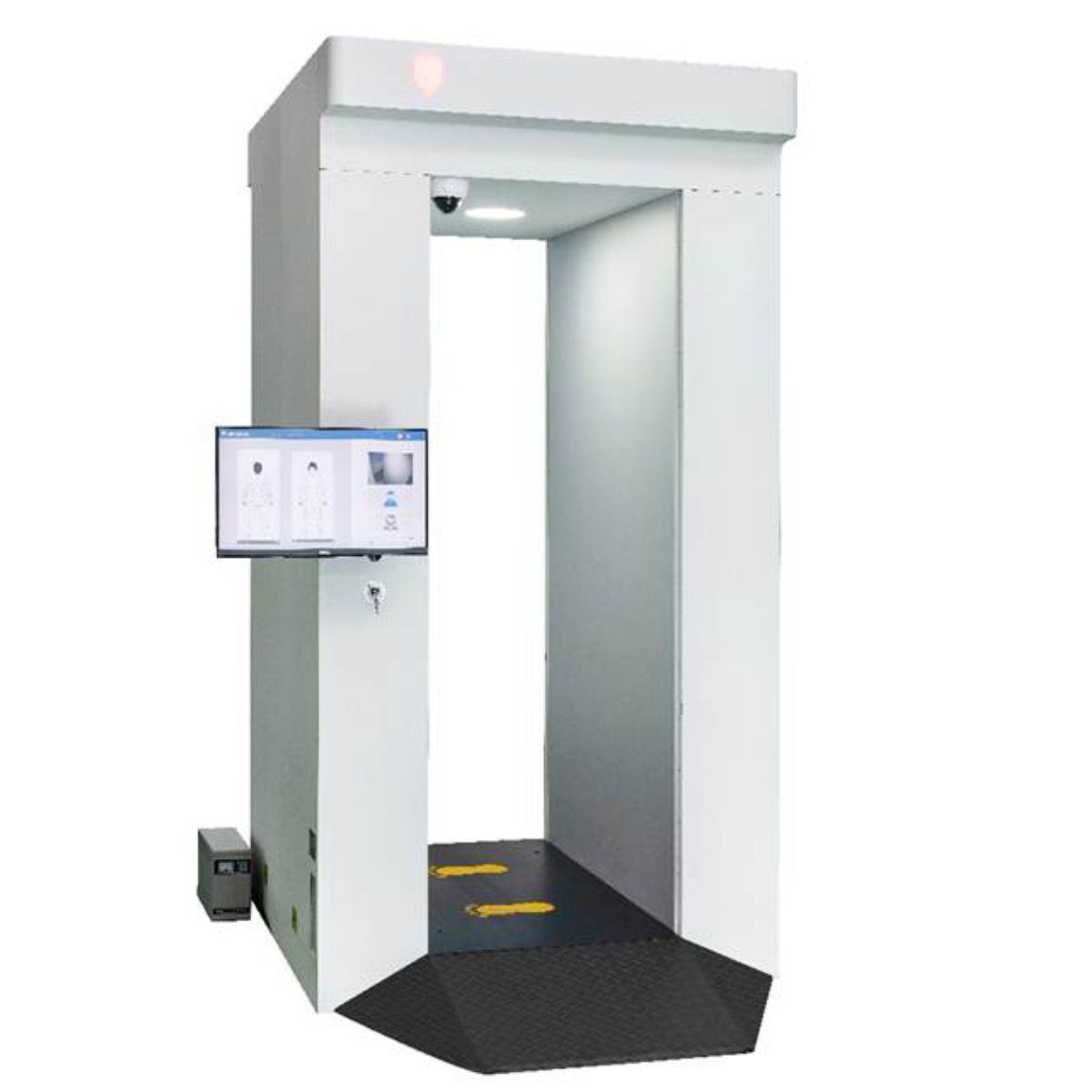

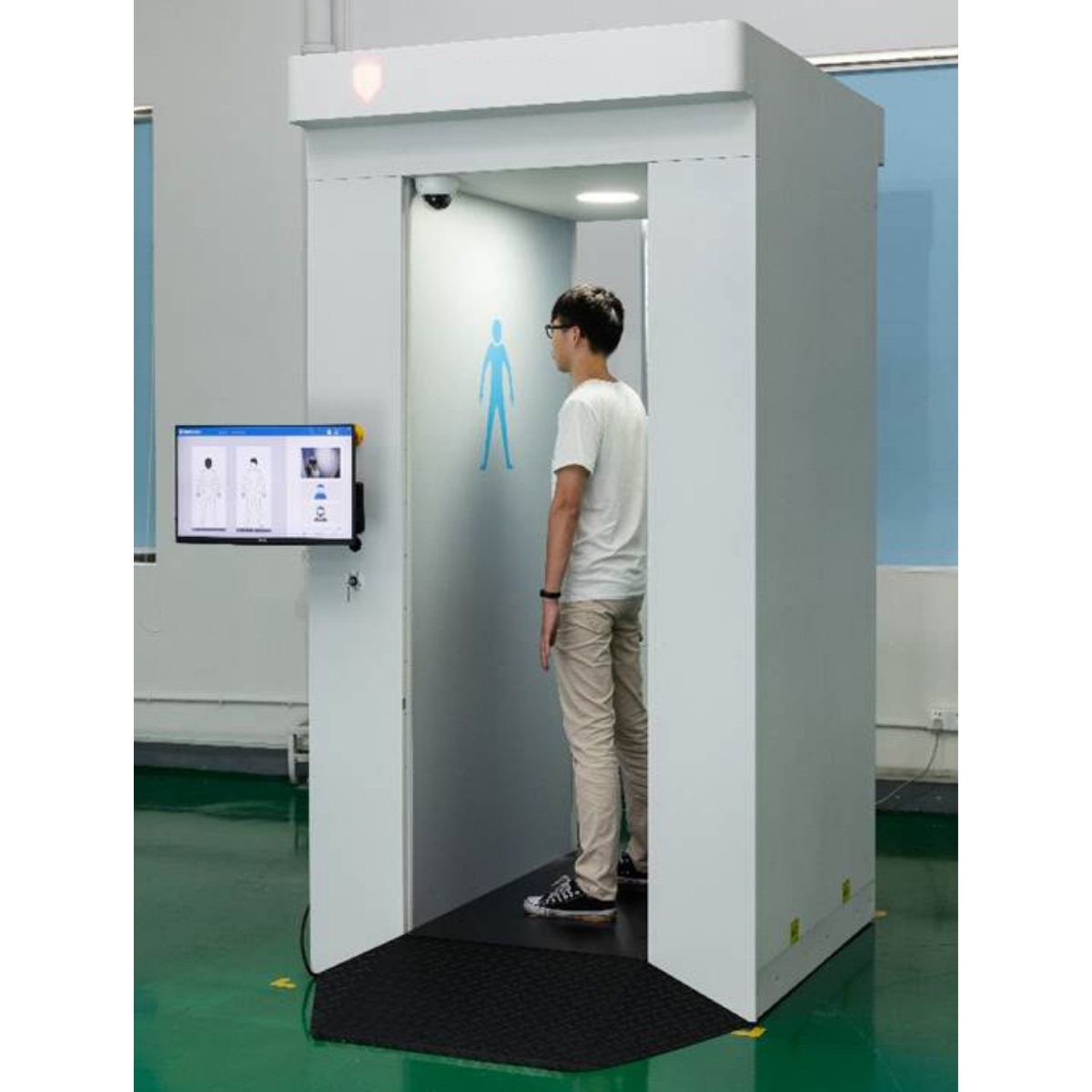

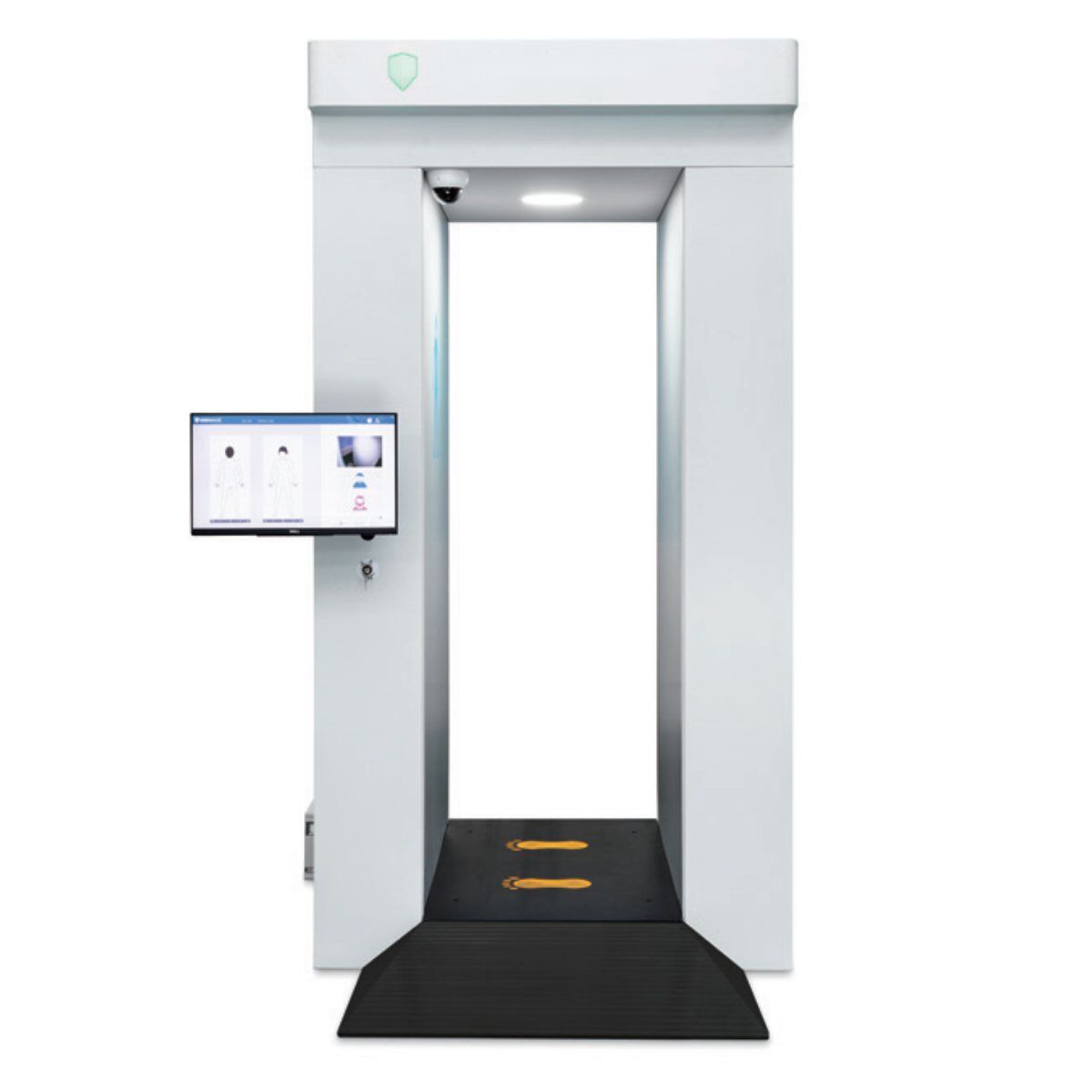

The millimeter wave non-contact human full body security inspection scanner is widely used in a variety of human body security inspection places such as the Public Security Bureau, Civil Aviation airports, Customs, high-speed railway stations, subways, ports, important venues, international exhibitions and competitions, large-scale events and anti-terrorism. In the case of not directly contacting the human body, the inspected person can effectively be detected the items hidden in different parts of the body surface which is under the clothing cover within 3 seconds by one single detection time. What’s more, especially non-metallic items can be detected, and can be obtained the information such as the shape, size and location of the objects from scanned image. This equipment has been exported to European, Southeast Asian and other countries, helping customers to protect the homeland security and people’s life and property safety. In the future, we will devote ourselves to creating other new model devices of public safety and smart security under the new technology of chips, the Internet of Things, artificial intelligence and big data.
High reliability
Use non-contact and high efficiency to solve the metal and non-metal prohibited items hidden between the human body surface and clothing.
High security
For general human security inspections, the equipment does not produce any ionizing radiation under working or non-working conditions.
Efficient and fast
With high resolution and fast imaging, it adopts a multi-terminal differentiated human security inspection solution, which greatly improves the efficiency of walking through while ensuring safety.
Intelligent Technology
Composite sensor fusion, multi-target automatic identification, intelligent alarm, collaborative networking work, upgradeable contraband database, manual and automatic modes to help ensure public safety in all directions.
Easy to operate
One-click operation, and security personnel can quickly grasp it. The equipment adopts modular design, convenient installation and maintenance.
Privacy protection
Non-contact inspection, the test result does not show any physical characteristics details, fully protecting the privacy of the inspected person.
General
Working method: non-contact scanning
Single detection time (scan + imaging): ≤3 seconds
Operator (standard configuration): 1 person
Types of detectable items: metal/non-metal knives, explosives, ceramics, liquids, paper currency, plastic products, gels, powders, electronic products and other suspicious items.
Image Processing
Automatic identification of suspects: Yes
Privacy protection: with privacy protection design, the face of the stored human body image of the subject is blurred.
Image processing: contrast adjustment, brightness adjustment, reverse color adjustment, zoom
Installation data

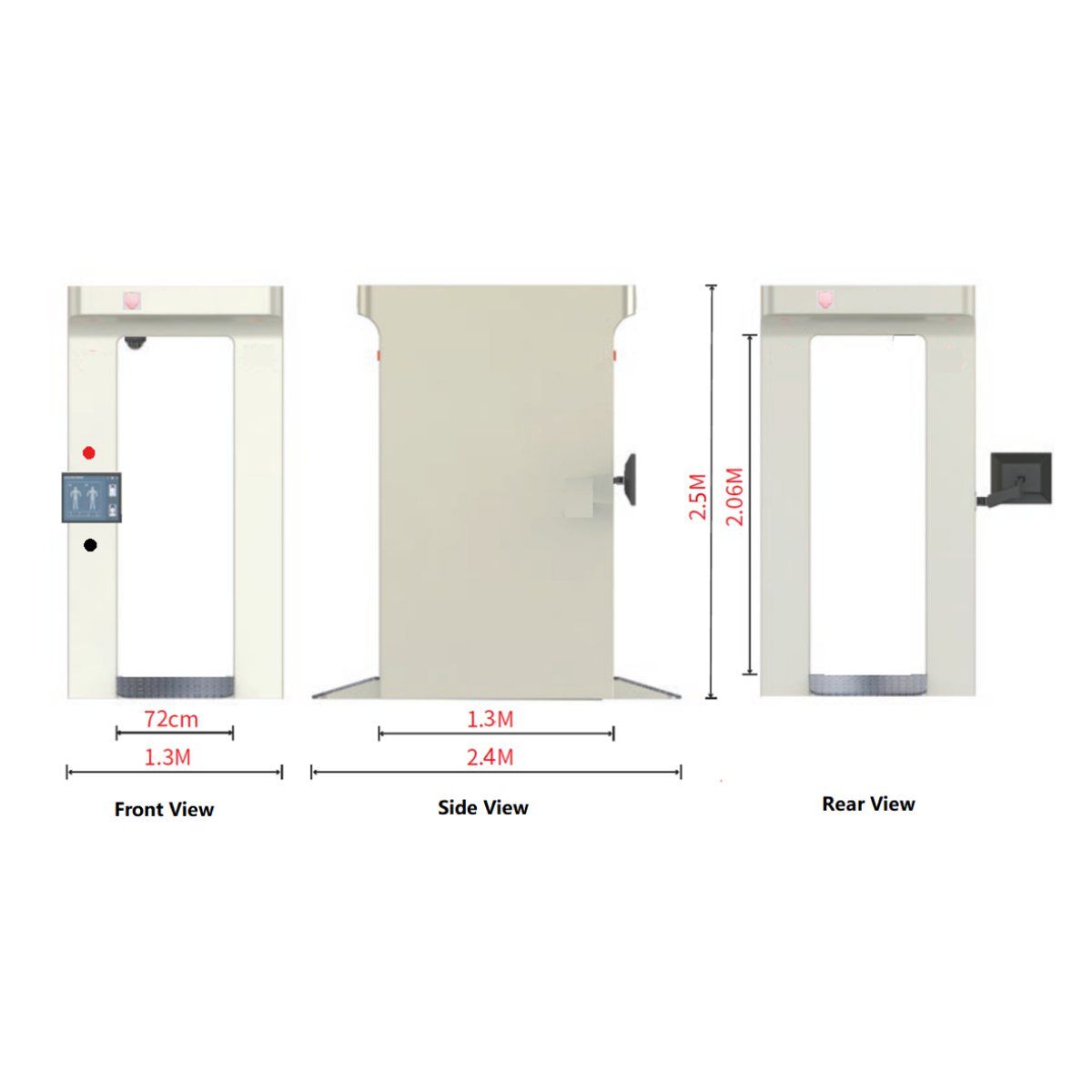

Equipment size: height: 2495mm; width: 1295mm
Equipment weight: <600kg
Power supply: 220V power supply
System power consumption: < 800W
Operating temperature: -5℃~45℃
Storage temperature: -25℃~55℃
Advanced Features
Extended functions option: support foot metal detection, provide centralized inspection/remote inspection/centralized management system/portable mobile inspection
