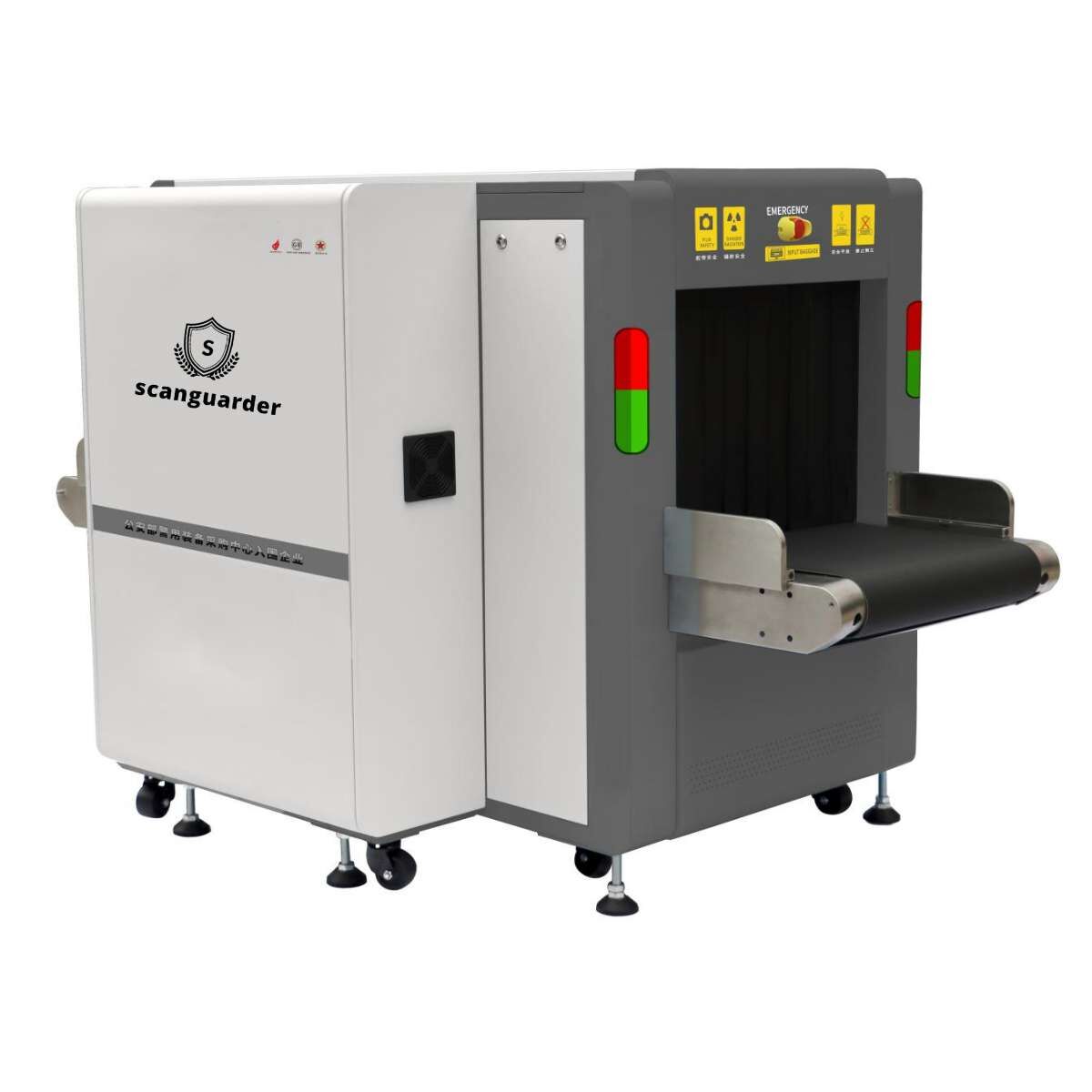

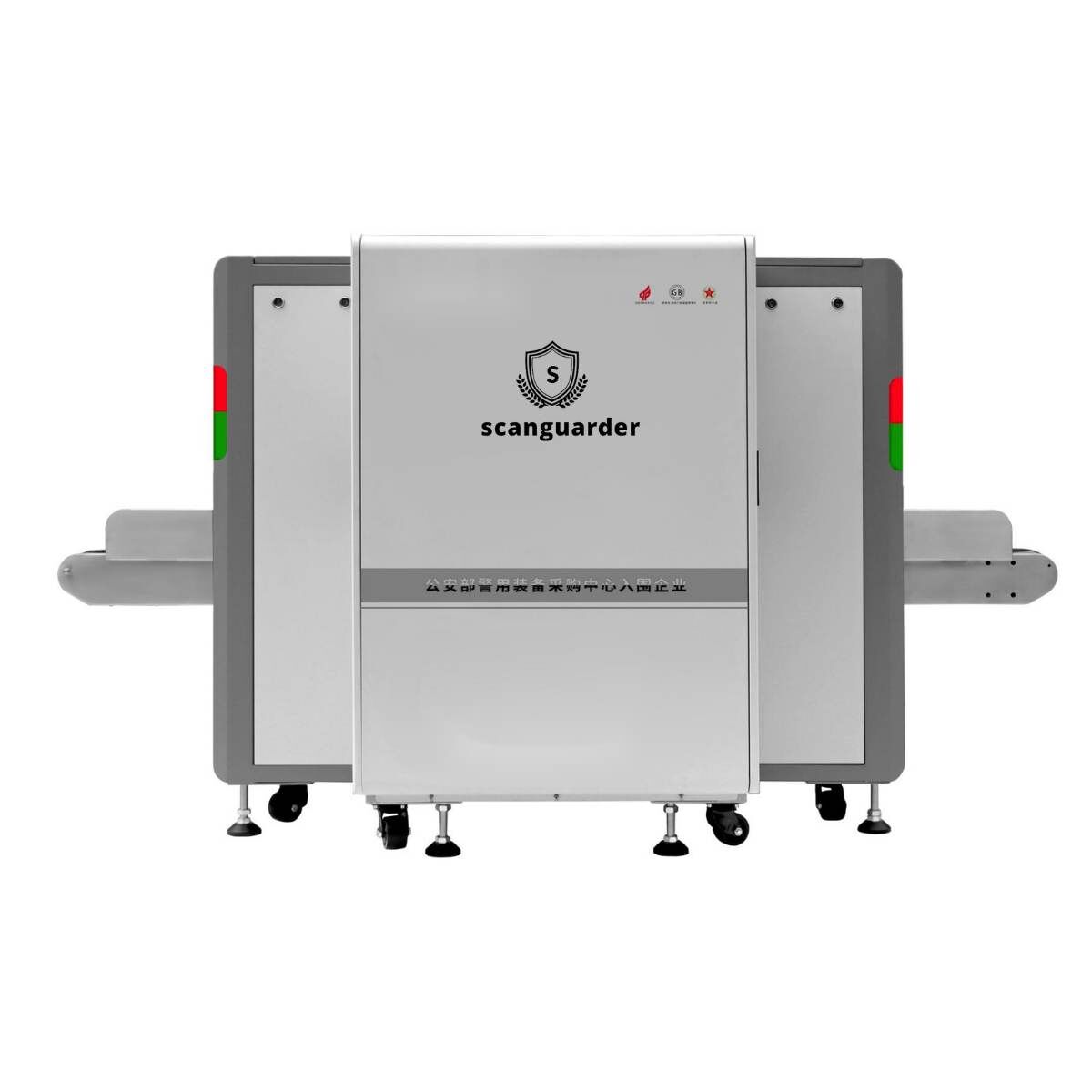

Foreign Matter Detection X-Ray Scanner

Additional information

Channel size

503mm(W)*303mm(H)

Conveyor speed

0.22m/s

Conveyor max load

60KG

Penetration

10mm

X-Ray dosage each inspect

≦2.0μGy

Equipment noise

<52dB(A)

Boundary leakage

≦0.08μGy/h

Product Introduction:

This S5030Y model X-ray baggage scanner is mainly to screen the foreign matter in baggage, parcels, shoes, clothes, toys, food, etc. The purpose is to detect whether there are broken needles, nails, scan the product structure and adhesives to detect and judge foreign substances such as metal remnants, non-ferrous metals, stones, glass, bones, etc. in a variety of products. With single energy X-ray scanning, helping security inspector to recognize and judge these foreign matters directly from the clear image.

Product Details:

Which industry can be used for foreign matter scanning?

Widely applied in the food, clothes, milk powder production, toys, plastic products, pharmaceutical industry, Integrated circuit board manufacturing, textile industries.



How is it works to detect foreign matter?

Utilizing the penetrating power of X-rays, and the highly integrated AI neural recognition algorithm and optimized configuration, from bones, plastics and other hard foreign objects to various metal foreign objects can be detected with higher sensitivity and stability performance.



Foreign Matter Detection X-Ray Scanner

What’s the features for this foreign matter detection X-ray scanner?

  1. Clear image effect
  2. Low radiation leakage dose rate
  3. Image color recognition switch for easy judgment
  4. Software and hardware emergency stop
  5. Modular design, convenient for maintenance and testing
  6. Low operating noise
  7. Easy operation
  8. Ergonomic design
  9. Friendly human-computer interaction interface
  10. Accurate counting and alarm function

Foreign Matter Detection X-Ray Scanner-2

Is there any other special designs for option?

  1. Image printing: Can print the pictures on the screen randomly and in real time.
  2. Barcode printing: You can print the item’s model and name, customer information, serial number, and production time on the barcode. And can edit the content want to print at your will.
  3. Intelligent queuing conveying function: Front-end intelligent conveying extension rack, it can choose automatic conveying and inching control, single piece passing, saving labor cost and improving efficiency.
  4. Support OEM based on customer’s actual requirements.

Foreign Matter Detection X-Ray Scanner-4
