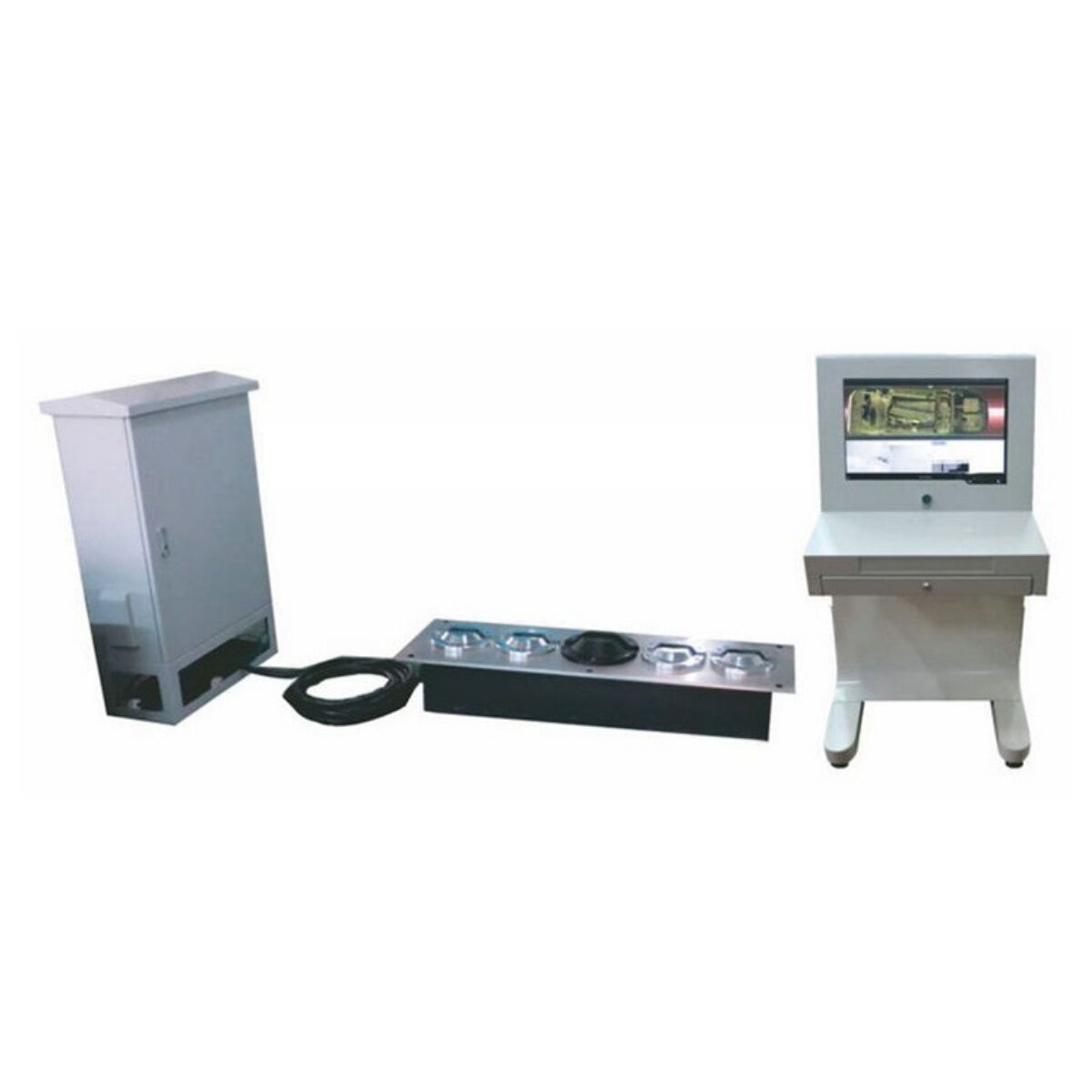

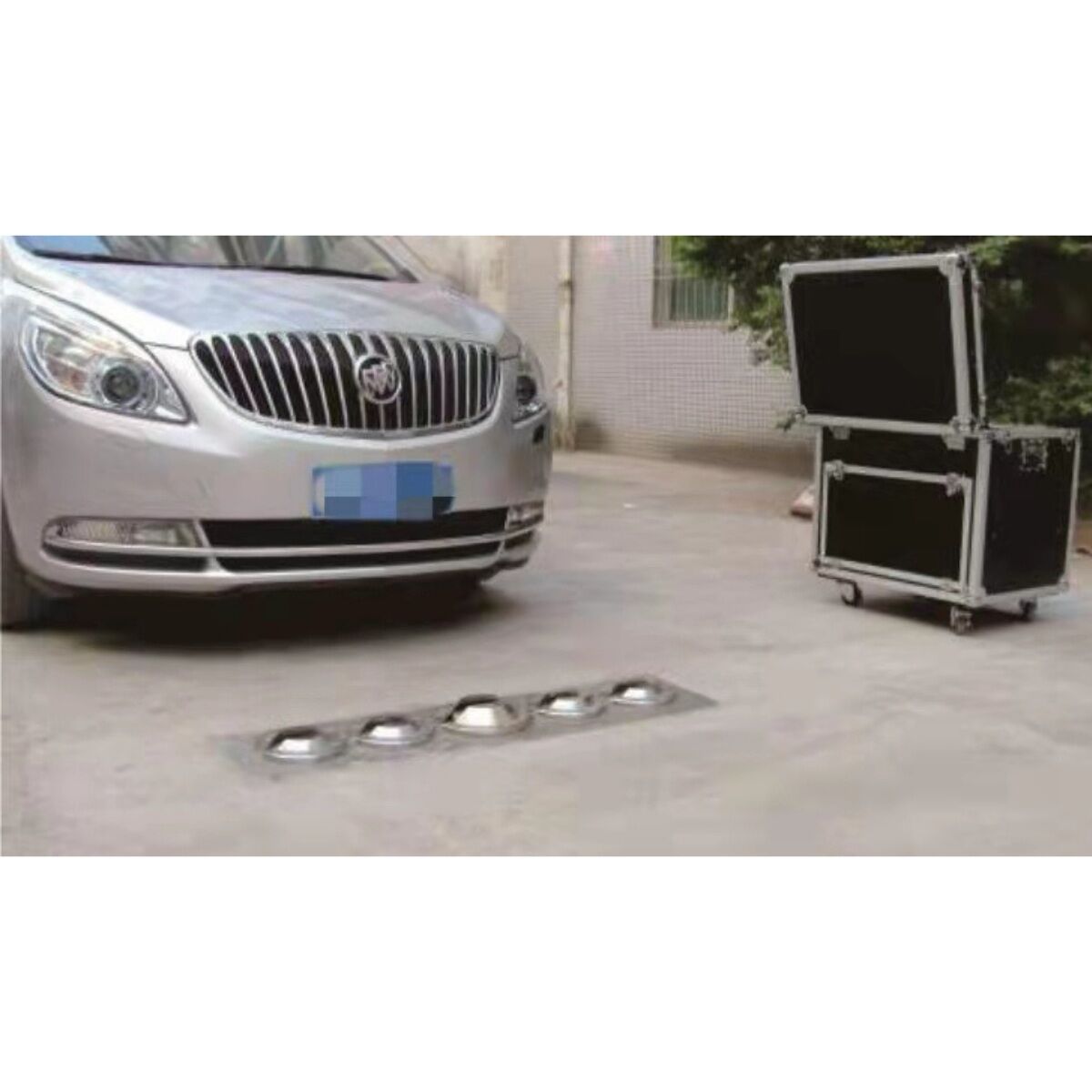

Fixed style vehicle chassis safety inspection device

Application place:

◆ Airports, prisons, Customs and other government departments, as well as the entrances and exits of large public parking lots are used to check whether there are prohibited items in and out of vehicles.

◆ Carry out safety inspections at the entrances and exits of large-scale events and exhibitions.

◆ Used for security inspection, explosion-proof, and safety inspection of the bottom of military vehicles.



Features:

◆ With digital line scan camera, there is extremely high image resolution and sharpness.

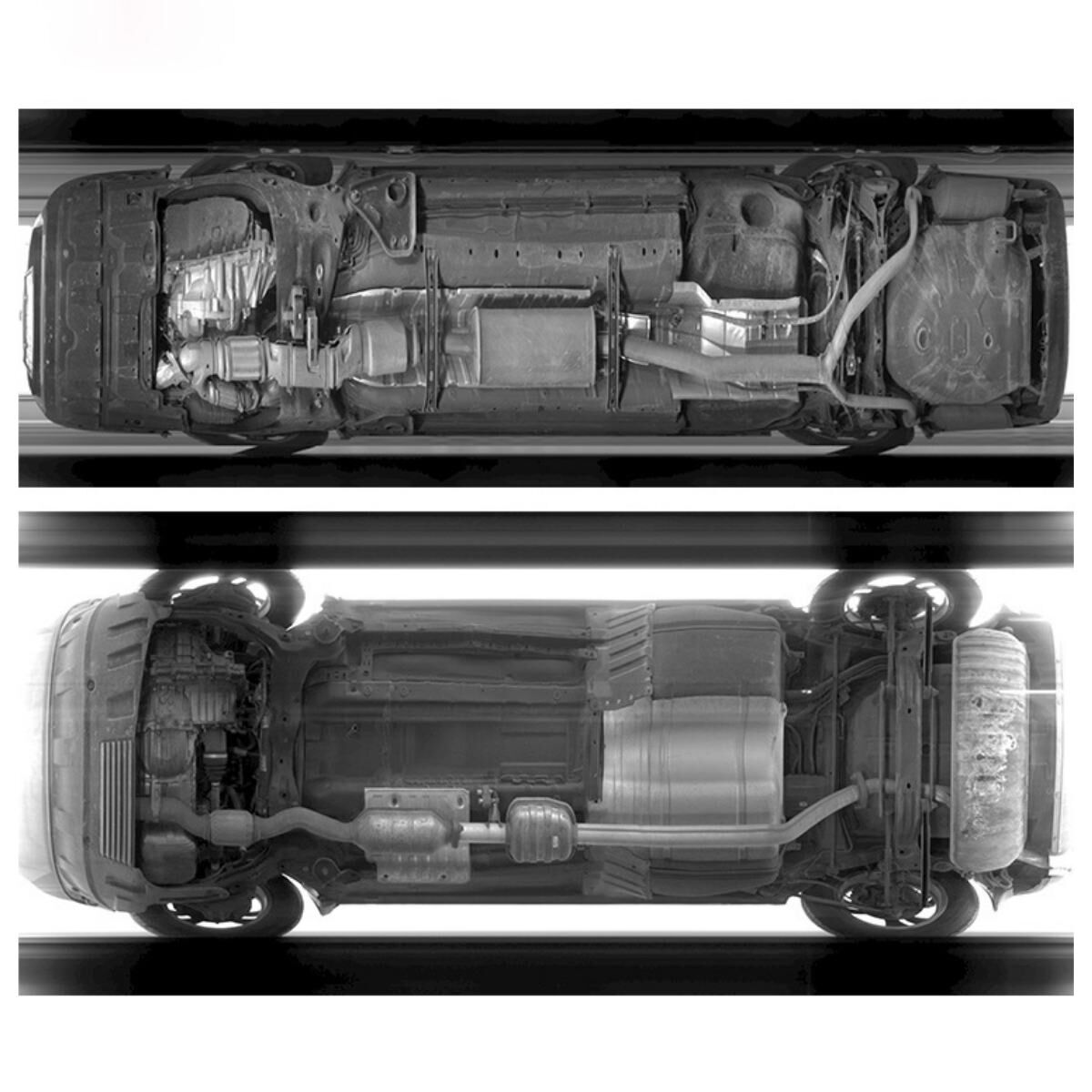

◆ The bottom of the car is completely imaged without any omissions, and the image is clear, complete, and distortion-free, and objects not less than 2mm in diameter can be clearly observed.

◆ IP68 high water-proof level, compression and earthquake resistance, suitable for use in any climatic environment.

◆ The inspection process can be prepared on-site to meet various on-site needs.

◆ Multi-channel scene image monitoring and recording function.

◆ Multi-language operation interface design.

◆ Support image recognition or RFID technology for vehicle identification.

◆ Strong extension capability, can easily realize the linkage control of various systems, (such as: anti-collision system, barriers, etc.).

◆ Support the networking control function of multiple devices.



Vehicle image scanner, control equipment and environmental adaptability:

◆ Scanning mode: linear scanning, ground induction coil trigger;

◆ Passing speed: 1-80km/h, recommended ≤30km/h;

◆ Field of view angle: ≥175 degrees;

◆ Vertical image resolution: 2048 pixel CCD;

◆ Scanner data cable: 100 meters; (length can be customized);

◆ Lighting components: four single sealed LED surface light sources; life span: 100000h;

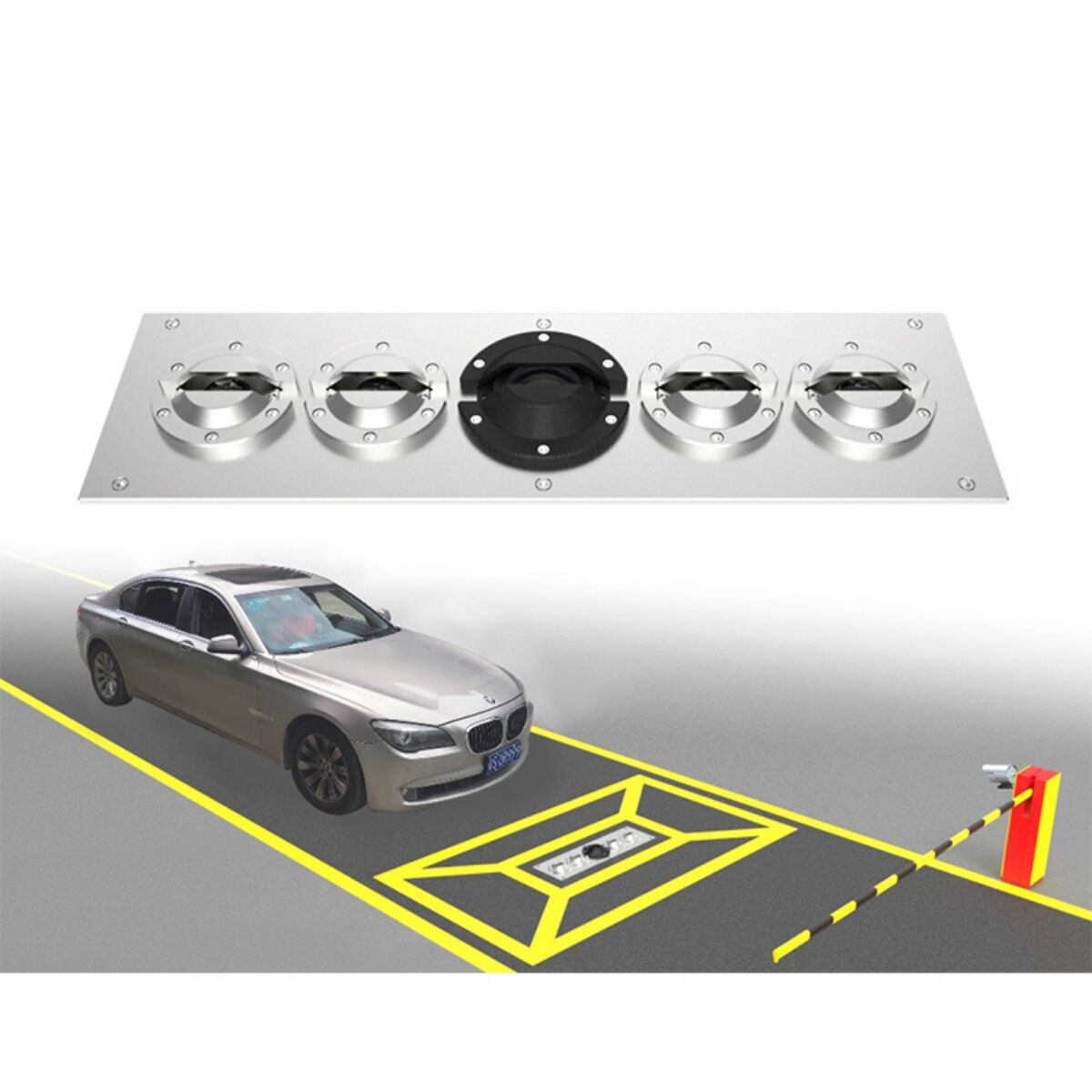

◆ Vehicle bottom image scanner: Designed with open wide field of view vehicle bottom image acquisition technology;

◆ Working voltage: DC24V;

◆ System power supply: AC110-240V/50-60Hz.

◆ Structural design: single-sealed design;

◆ Waterproof rating: IP68

◆ Bearing capacity: 30T

◆ Scanner size: 1200*350*210mm

◆ Scanner weight: 130kg

◆ Ambient temperature: -40 degrees-＋70 degrees



System host server and display:

◆ Display: 21.5-inch true color LCD display

◆ CPU: INTEL Core Quad-core processor

◆ Motherboard: dedicated motherboard

◆ Memory: DDR3, greater than 4GB

◆ Hard disk: 500G high-speed hard disk

◆ Graphics card: DDR3, 192BIT independent graphics card

◆ Appearance: stainless steel composite material

◆ Working voltage: AC220V50/60Hz

◆ Working current: 3A

◆ Working temperature: -20℃～55℃



System software:

◆ Chassis storage or loading time: <1 second;

◆ Partial magnification of the bottom image of the vehicle: >2 times;

◆ Car bottom image zoom: 16-level zoom

◆ Vehicle bottom image display mode: large-format horizontal display;

◆ Chassis image storage format: standard BMP image format or JPEG;

◆ System interface language: customizable;

◆ Display resolution: 1920×1080P

◆ Communication interface: RS232/RS422

◆ Scene image display: ≥1 channel;

◆ Variable speed recognition, with special under-vehicle image post-processing function. (when the vehicle stops suddenly during passing detection and restarts, the system will automatically recognize it to ensure a complete image when the vehicle passes)
