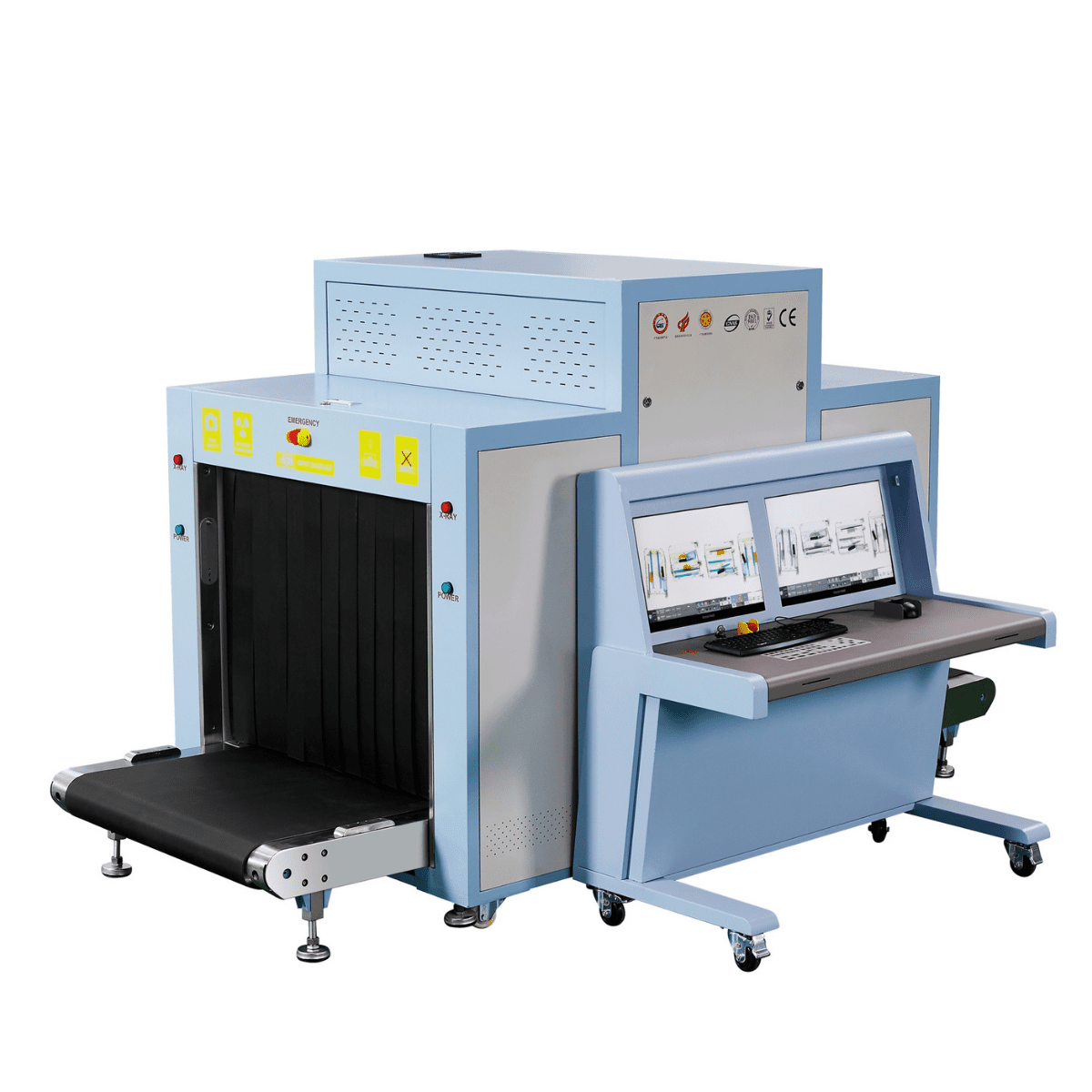

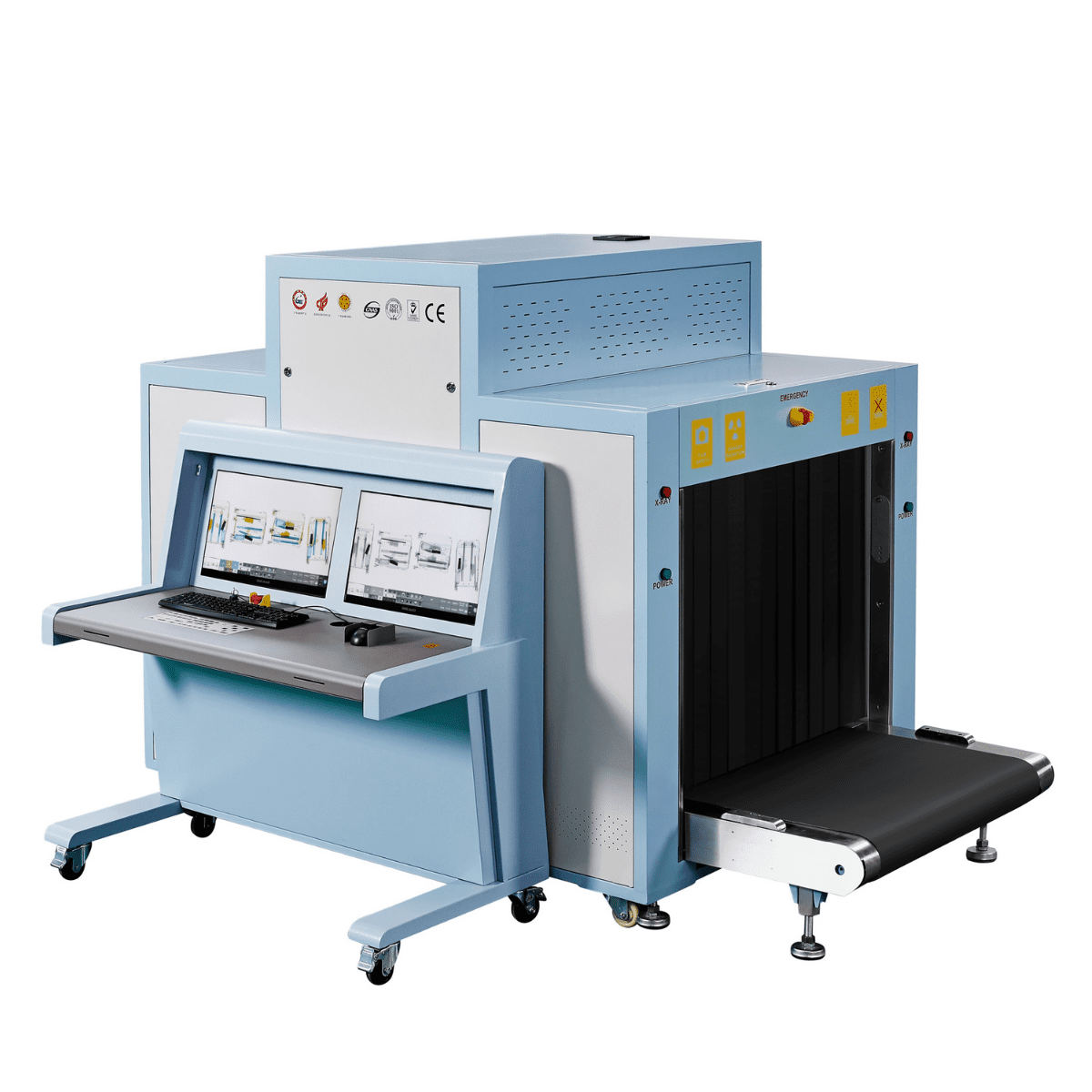

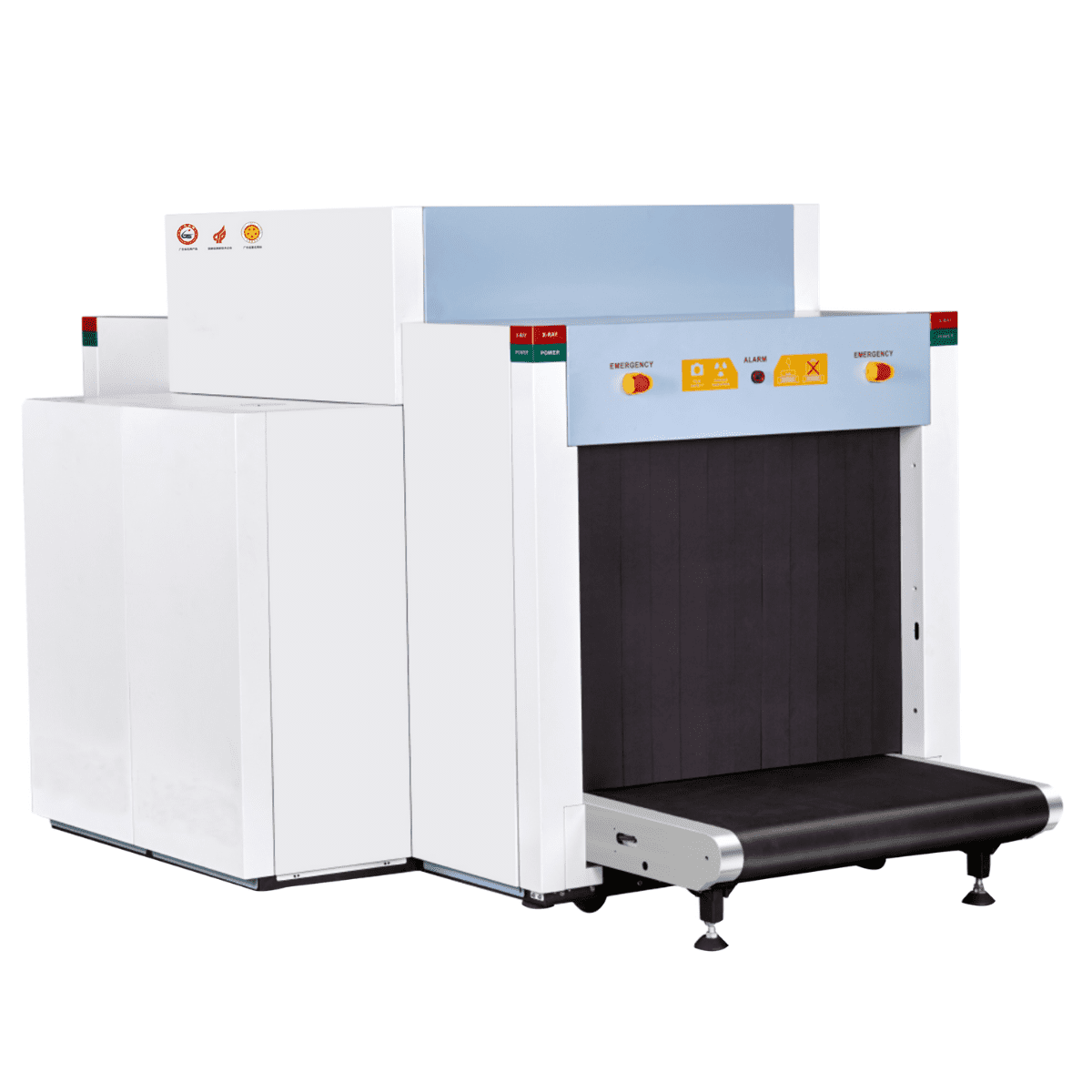

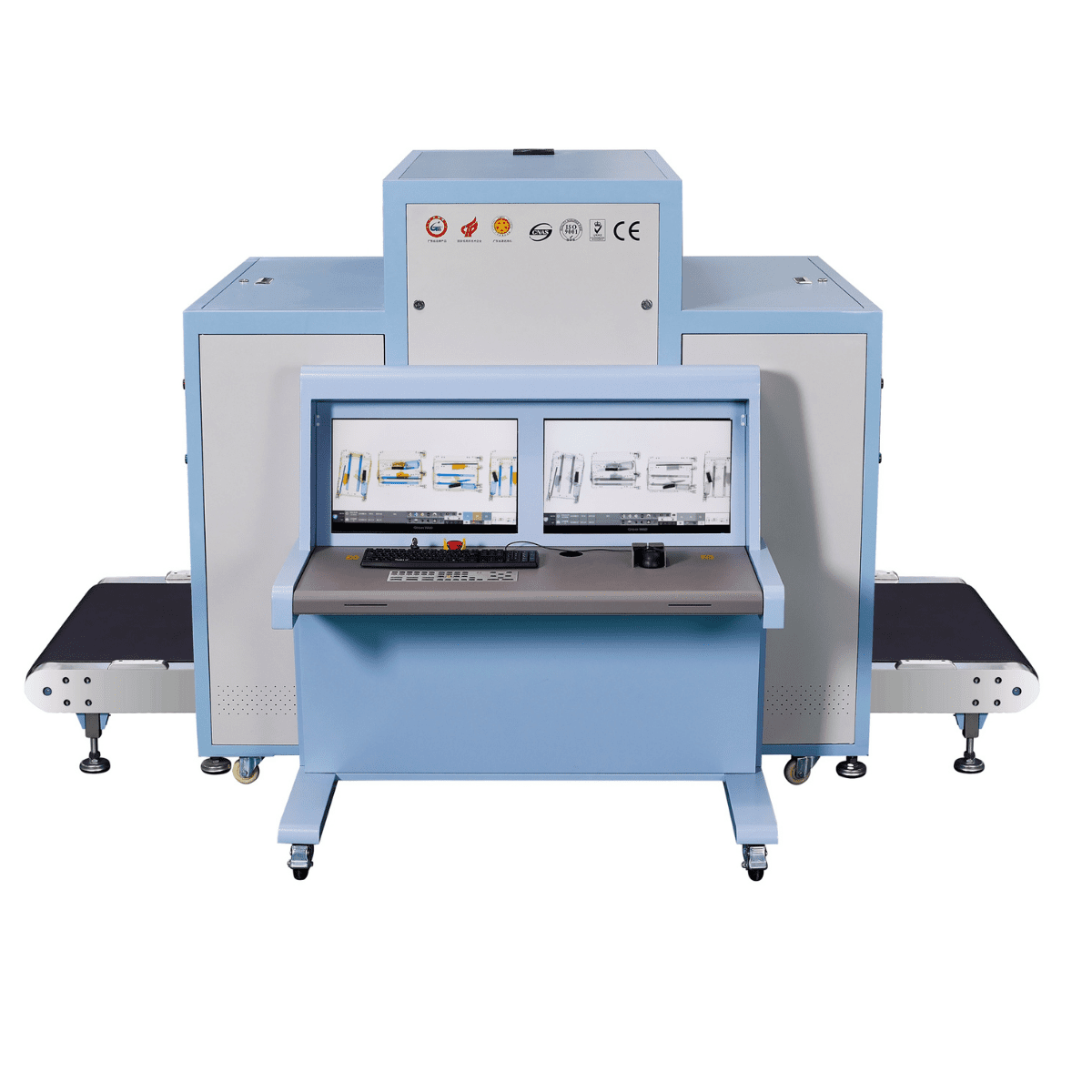

Dual View X-Ray Baggage Scanner Security Check for Airport, Bus Stations, Railway Stations Tunnel size 1000mm(W)*800mm(H)

Two independent X-ray light source inspection systems are used to collect image data from both horizontal and vertical directions at the same time. Even if the measured object is placed at any angle, it can output the contour of the object in a three-dimensional manner, effectively distinguish the shape of the objects, and solve the problems of missed detection and false detection caused by occlusion.

Application:

Widely used to detect prohibited items and flammable and explosive items hidden in small and medium-sized goods, parcels, mails, bags and other objects such as controlled knives, guns, fireworks, alcohol, ethanol, gasoline, sulfuric acid, etc. at Airport, Bus Stations, Railway Stations and other important departments in public places.

Advantages:

1. Stable quality performance and High-end module parts: Equipped with UK Sens-Tech acquisition system, Japan Hamamatsu detector, and dual digital ray source.

2. High penetration: The line resolution is 0.0787mm (40AWG), and the penetrating power is 46mm steel plate at top-view angle and 48mm steel plate at side-view angle.

3. Multifunctional image processing: Single image 1920*1080 high-definition image display, pseudo color/black and white color optional. Color/black and white image switching, organic rejection, inorganic rejection, easy to distinguish object types. Provide dangerous goods image insertion function (TIP function). Save pictures in multiple formats and support to save as to a USB storage device.

4. Item type auxiliary detection function: During the scanning process, it can automatically identify flammable and explosive organic matter, metal and inorganic matter in the inspected object and classify and frame it in different color boxes. You can also be given special color frame selection tips for opaque areas.

5. Low X-ray leakage dose rate: The X-ray dose rate around the equipment is close to the natural background level, in line with international health and safety standards.

6. Quick emergency stop: Software or hardware emergency stop equipment can be used arbitrarily according to actual operating conditions to deal with various emergencies.

7. Device modular design: Each module handles different tasks separately, which is convenient for fault detection and maintenance.

8. Low Noise: The noise of the whole machine does not exceed 52dB (A) at any place 1m from the outer surface of the equipment.

9. Easy Operation: According to the ergonomic principle, the special keyboard selection, image display and human interaction interface are designed to effectively improve the ease of use of the equipment.

10. Strong structure: Use 304 stainless steel, 2-3mm cold-rolled plate and square steel, the structure is stable and firm, rust-proof and anti-corrosion and cable damage.

11. Customization: Face recognition function, traffic statistics function
