| Dimension | 425mm (L) * 302mm (W) * 187mm (H) |
|---|---|
| Weight | 4.9KG |
| Power consumption | 3.6W |
| Working current | 0.35mA |
| Working temperature | -10℃-+50℃ |
| Power supply | AC180-240V (50/60Hz) |
| Battery | 3000mAh/12V; working time ≥5h |

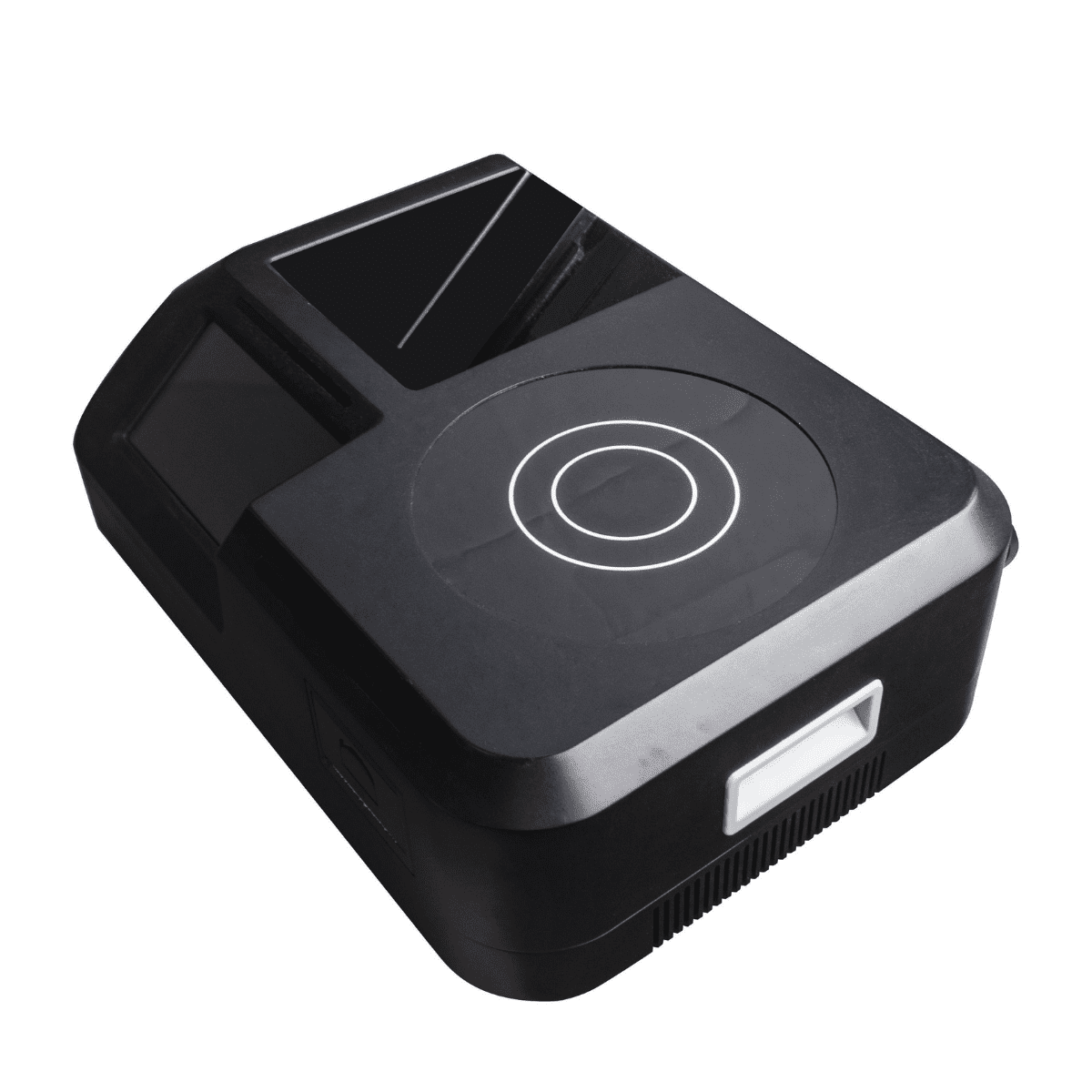

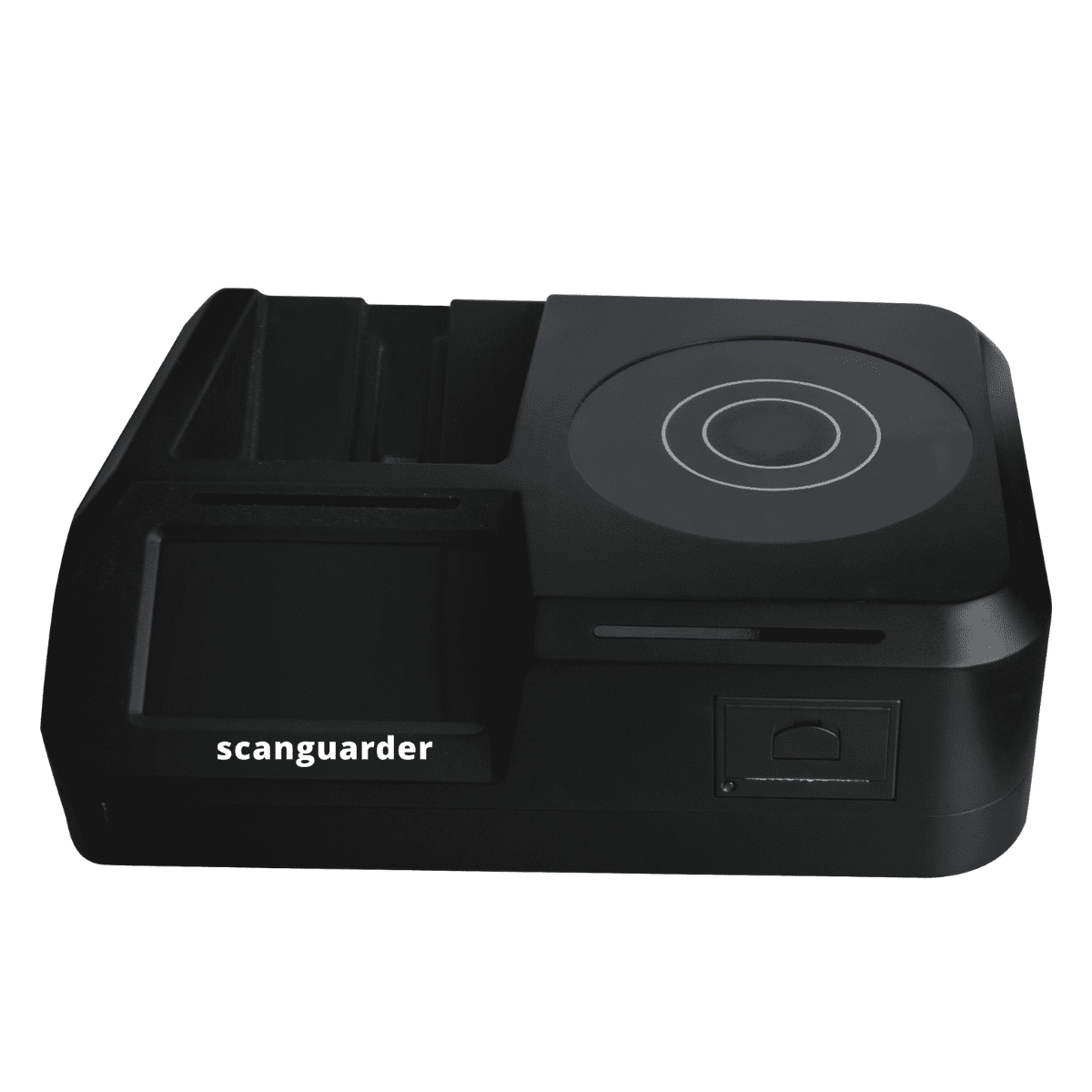

The S-LS2000 desktop dangerous liquid scanner adopts non-invasive detection methods and is suitable for the inspection of various common packaging liquids such as glass, plastic, metal, ceramics, etc. It can automatically detect flammable, explosive, and corrosive dangerous liquid without opening the liquid package. The scanner has a built-in wireless communication module, which can upload test data and equipment information to the background management system in real time. It has the advantages of high recognition rate, fast detection speed, and wide detection range. Main purpose to use this scanner is to prevent those items containing dangerous liquids (which can cause burning or explosion) from entering safe areas. It can be widely used in safety inspection places with intensive crowds or important activities such as stations, subways, government agencies, stadiums, and Customs.
Below dangerous liquids can be detected:
★Extremely fast detection: Non-metallic material bottle liquid detection time ≤1s, metal material bottle liquid detection time ≤4s; and non-metallic material bottle liquid and metal material bottle liquid have corresponding detection function modules, each of the two functional modules work independently, can detect at the same time without affecting each other;
★Intelligent component recognition: A unique liquid dangerous goods detection system with component recognition, which can give specific names of main components;
★High accuracy rate: The unique sensor network design makes the system have a much higher sensitivity than similar products, and can detect liquids with a liquid level of ≥3cm and a volume of ≥100mL;
★Automatic reset: The instrument can automatically reset after an alarm;
★Low false alarm rate: The unique intelligent algorithm and dual database design make the system have the highest reliability and the lowest false alarm rate in the same type of products, and the false alarm rate is less than 1%;
★Environmental protection design: Adopting green environmental protection design, especially use non-invasive detection technology, does not contain radiation, is harmless to the human body and the inspected items, and also the detection method is environmentally friendly and safe;
★Alarm mode: The detection result is in two modes: indicator light and sound alarm. At the same time, the LED screen displays the result and gives the specific name of the main component, which is intuitive and easy to distinguish;
★Storage function: It can store no less than 500,000 inspections, and export data through standard USB plug or RJ45 network plug, to read and analyze through software at computer;
★Dangerous goods alarm automatic printing function: This liquid scanner can automatically prints the detect result voucher after the alarm, which is convenient for identification;
★Database extension function: Unique dual database design (safe liquid database and dangerous liquid database), both can support users to manually add new liquid types to the database, and have the function of upgrading the sample library on site;
★Power supply mode: External power supply or use built-in lithium battery for power supply, the liquid scanner will give a low battery warning when the battery is low;
★Anti-leakage design: The device has an anti-leakage structure design.
★High-definition touch screen: 7 inch TFT high-definition display (with touch, adjustable backlight);
★Other various functions: The device has other functions like charging management, brightness adjustment, volume adjustment, network connection, printing, etc.
