| Weight | 0.52kg |
|---|---|
| Dimension | 370mm x 96mm x 38.5mm |
| Operation power | 7.4V, 1W (ERIP) |
| Battery | Replaceable lithium battery, 4.5H |
| Penetration | Up to 370mm brick wall |

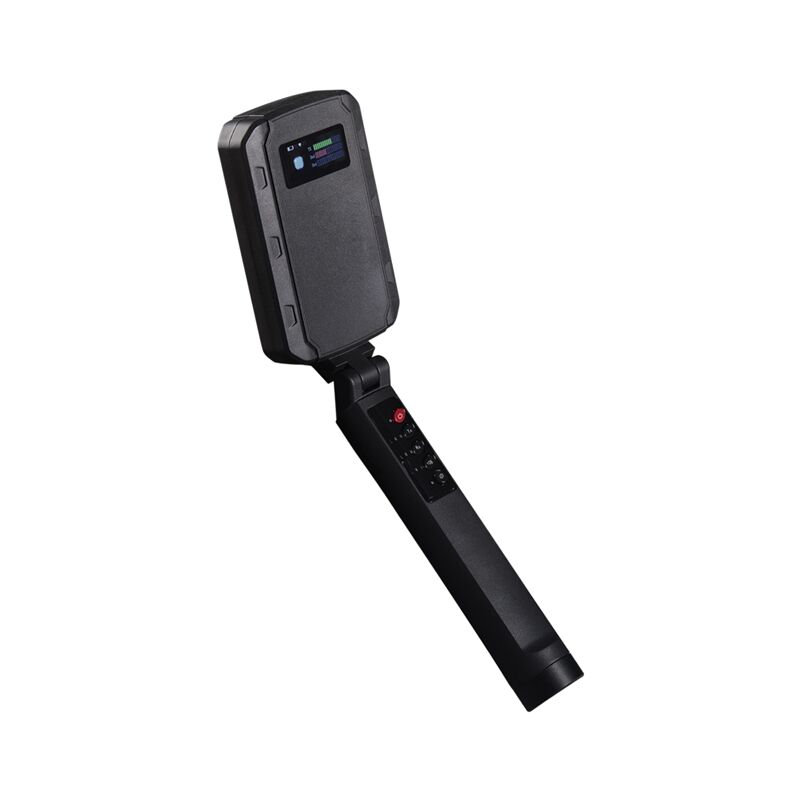

This is a compact portable nonlinear junction detector that can detect electronic devices hidden in the walls, floors, ceilings, lamps, furniture or containers, whether these electronics devices are emitting signals, switching on or off, and can be alerted by displaying sound alarming and vibrating, so that detector can find the target devices and protect organizational and personal privacy.
A Nonlinear Junction Detector (NLJD) is a device that illuminates a small region of space with high-frequency RF energy. Any “nonlinear junction” in the vicinity will receive this energy, and because of the asymmetric response of the junction to an electric field, it will mangle the original signal and produce harmonics at integral multiples of the original frequency. The Nonlinear Junction Detector detects these harmonics and alerts the operator.
The nonlinear junction detector transmitter S-band detection fundamental waves and captures the secondary and tertiary harmonics from the detected object. Artificial intelligence algorithm is used to analyze the harmonic law, so as to detect and identify the semiconductor electronic equipment with nonlinear junctions.
This Nonlinear Junction Detector mostly used for search and detection of different types of covert listening devices, various electronic appliances and transmitters comprising semiconductors. It can be useful in detecting hidden cameras, microphones, and other electronic devices.
Nonlinear Junction Detector as security screening equipment, is also widely used in below application scenarios such as security screening, police, Anti-terrorism, Explosive Ordnance Disposal, military and etc.
High detection sensitivity
Detection sensitivity is adjustable, high sensitivity is helpful to find hidden electronic products in the wall, floor, furniture, etc.
High detection penetration
The ability to penetrate the brick walls up to 370mm, bugs have nowhere to hide.
Low false alarm rate
Built-in detection calculation logic, the algorithm analysis can greatly improve the detection capacity and reduce false alarm rate.
Compact and portable
Its ability to detect electronic devices that are turned off or have no power source. It is also portable and easy to use.
Flexible and safe operation
Full GUI interface, simple and intuitive; function keys are clear and easy to operate.
It meets the management requirements of industry radiation environmental protection guidelines and is absolutely safe and harmless to humans.
Operating frequency band: 2.400GHz
Operating voltage: 7.4V
Frequency range: 2.404GHz – 2.472GHz
Received 2nd~3rd harmonic range: 4.808GHz – 4.944GHz; 7.212GHz – 7.416GHz
Pulse mode transmitting power (max): 1W (ERIP)
Reception sensitivity: ≤-125dBm
Working time at max power consumption: 4.5 hours
Battery Type: Replaceable lithium battery
Detection distance: >6 meters
Penetration: Up to 370mm brick wall
Operation interface: Display of received harmonic signal strength; Support audio alert with headphones; Support vibration alert
Product Size: 370mm x 96mm x 38.5mm
Package Size: 355mm x 295mm x 165mm
Product weight: 0.52kg
Operating temperature: -20℃~55℃
Working humidity: Not more than 93%, no condensation
